Practical. Portable. Smart.
The ReechCraft PowerLift PL20 takes you to new heights for indoor facility maintenance. Unlike traditional ladders and scissor lifts, no matter what tight spaces or uneven surfaces you need to work on, our portable PowerLift PL20 gets the job done.
PowerLift PL20 Specifications
Conforming Standards
ANSI A92.20
Maximum Working Height
20.3 ft (6.19 m)*
Platform Capacity
350 lb (159 kg)
Power Source
AC or DC Drill
Rated Horizontal Force
52.5 lbs (23.46 kg) (234 N)
Machine Weight
278 lb (126 kg)
Swivel/Lockable Caster Diameter
5 in. (127 mm)
*Maximum Platform Height plus 6 ft (2 m).
Specifications subject to change without notice.
Platform Size (L x W)
26 in. x 30 in. (660 mm x 762 mm)
Mast Section Weight
20.7 lb (9.4 kg)
Front Outrigger Weight
10.3 lb (4.7 kg)
Rear Outrigger Weight
7.8 lb (3.6 kg)
Worm Drive with Integrated Drive Gear & Brake
Flat-Free Transport Wheels
12 in. x 3.5 in. (305 mm x 89 mm)
PowerLift PL-60

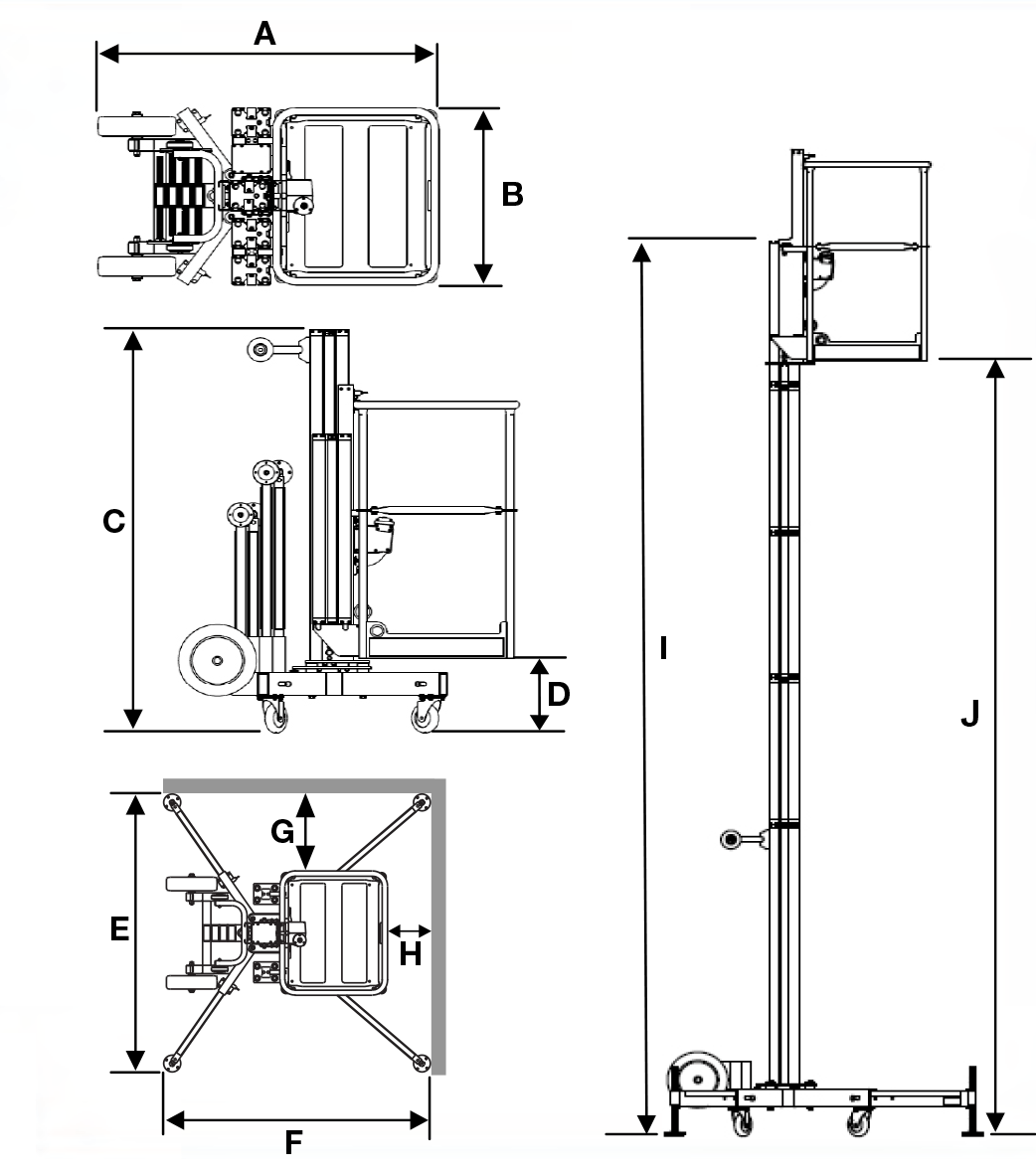

PowerLift PL20 Dimensions
A – Stowed Length
53 in. (1346 mm)
B – Stowed Width
30 in. (762 mm)
C – Stowed Height
69 in. (1741 mm)
D – Minimum Platform Height
12.9 in. (329 mm)
E – Outrigger Footprint Width
67.1 in. (1704 mm)
F – Outrigger Footprint Length
64.4 in. (1636 mm)
G – Distance from Wall Side
18.5 in. (470 mm)
H – Distance from Wall Front
10.3 in. (262 mm)
I – Erected Mast Height
16.3 ft (5.0 m)
J – Maximum Platform Height
14.3 ft (4.34 m)
K – Maximum Working Height
20.3 ft (6.19 m)*
*Maximum Platform Height plus 6 ft (2 m).
Specifications subject to change without notice.
Get Where Others Can’t
Finally: a practical lift for tight spaces.
  • Stable in tight spaces
  • 350 lb platform capacity
  • Reaches 20 ft working height
  • Complies with ANSI and OSHA safety standards
Smart Design
  • Powered by electric drill
  • Masts stow for quick extension
  • Legs adjust to terrain and space
  • 0° turning radius
  • Rolls across any terrain
  • One person can carry up stairs
  • Fits through standard doors
Mechanics That Make Sense
Mechanics That Make Sense
Stowable Mast Sections

Mast extensions stow alongside basket for quick vertical changes during use. Individual mast design makes PowerLift maintenance easier and less expensive than traditional scissor lifts.

Dual-Access Basket

Single-man basket can be entered from multiple directions and removed for transport.

Transport Tires

Flat-free, 12 in. transport tires make the PowerLift portable on uneven terrain, curbs, and steps.

Caster Wheels

Non-marking, locking caster wheels help precisely maneuver the PowerLift and make it easier to be pushed by one person.

Gear Box

Our gearbox means the only thing you need to power the PowerLift is any electric drill, unlike complicated scissor lifts. The gearbox also features an Integrated Overspeed Braking System, which automatically stops the platform in case of accidental overspeed.

Coupler System

Makes attaching vertical mast sections fast. Lock levels prevent basket movement until masts are fully coupled.

Outrigger Pads

Adjusts to tight spaces and uneven surfaces. Designed to be easy on finished floors.

Stowable Masts
Stowable Mast Sections
Mast extensions are conveniently stowed alongside the basket. Adding, removing and stowing mast sections takes only seconds.
Exclusive Tech
Exclusive Technology
ReechCraft ‘s Integrated OverSpeed Braking System automatically stops the platform in the event of overspeed.
Customize To Any Height
Customize for Any Height
Specially designed coupler system allows for quick and easy attachment of extensions.
Easy To Adjust
Easy To Adjust
Easy-to-adjust outrigger pads fit in tight spaces.
Easy To Transport
Easy To Transport
12 in. flat-free transport tires allow easy movement across uneven terrain, curbs and steps.
Caster Wheels
Caster Wheels
Four non-marking, locking caster wheels on the main carriage make maneuvering the PowerLift easy.
Highly Portable
Easy elevation
Stacking mast sections allow PowerLift to be customized to any work height up to the regional standard. Adding, removing and stowing vertical mast sections takes seconds.
Easy to maneuver
Transport wheels make the PowerLift easy to move by a single man, even up stairs. Four swiveling caster wheels make it even more portable.
Simple to operate
The PowerLift fits in tight spaces better than scissor lifts. One man can operate, making it great for businesses, schools and rental applications.
Essential Information
View the specification sheet, read the opertor’s manual, and learn more about ReechCraft’s PowerLift.
Spec Sheet
PowerLift PL20 specification sheet is available for download.
Operator’s Manual
PowerLift PL20 Operator’s Manual is available for download.
PowerLift FAQs
Get the answers to the PowerLift’s frequently asked questions.
Mike Scharnell
VER Sales Inc.

PowerLift performs perfectly! We had a major client invite us to a trial along with other Aerial Work Platforms. PowerLift performed perfectly with 27 “solves” out of 27 tests. No other AWP at any price performed as well.
