ReechCraft PowerMast
Components + Accessories
ReechCraft PowerMast includes a wide variety of components and accessories that provide added benefits based on what each user needs. The variation of PowerMast accessories and components helps it adapt to any project.

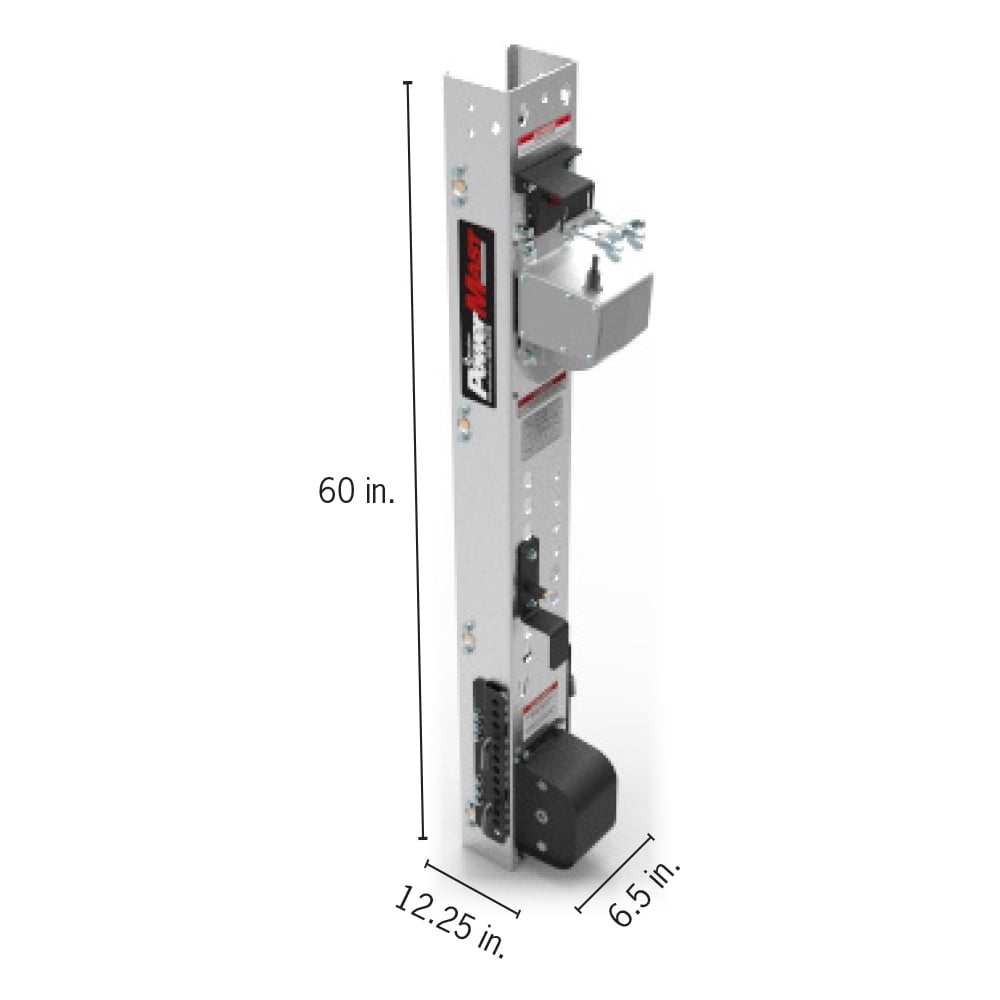

The PowerMast climbing unit ensures safe and reliable performance thanks to features such as a gearbox with overload clutch, overspeed brake, and lock lever. Powered by a 1/2-inch drill (not included), the durable PowerTrak™ drive system has up to a 1500-pound (680 kg) load capacity and can be erected from the ground up. It also includes attachment interfaces for the platform support and single mount platform assembly.
Product Dimensions: 12.6 in. (320 mm) x 10.6 in. (269 mm) x 59 in. (1499 mm).
Shipping Dimensions: 13 in. (330 mm) x 12.5 in. (318 mm) x 60 in. (1524 mm)
Shipping Weight: 57 lbs (26 kg)

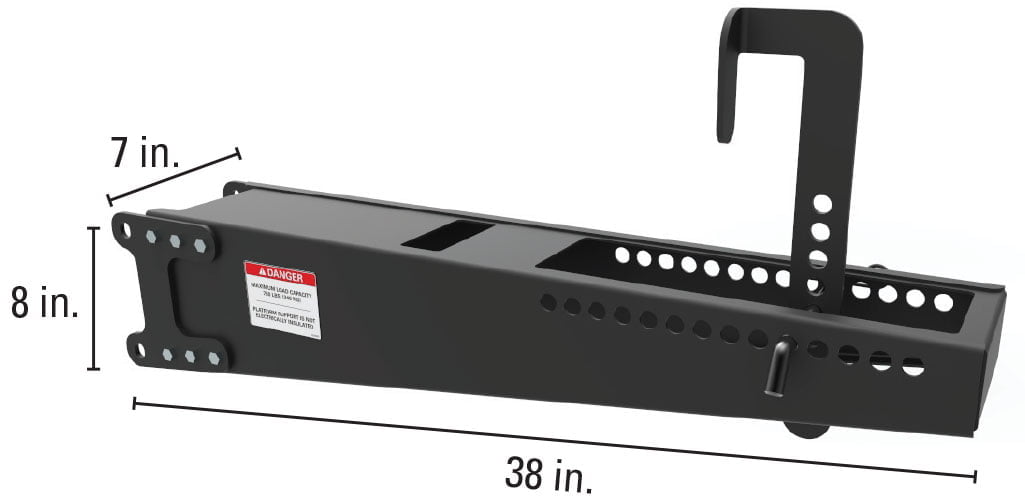

The PowerMast platform support features a quick-attach mount system, fastening to the climbing unit with four quick-locking pins. It is adjustable from 20-33 inches (508-838 mm) to accommodate most platform and rail systems.
Product Dimensions: 38 in. (965 mm) x 7 in. (178 mm) x 8 in. (203 mm)
Shipping Dimensions: 40 in. (1016 mm) x 10 in. (254 mm) x 10 in. (254 mm)
Shipping Weight: 29 lbs (13 kg)

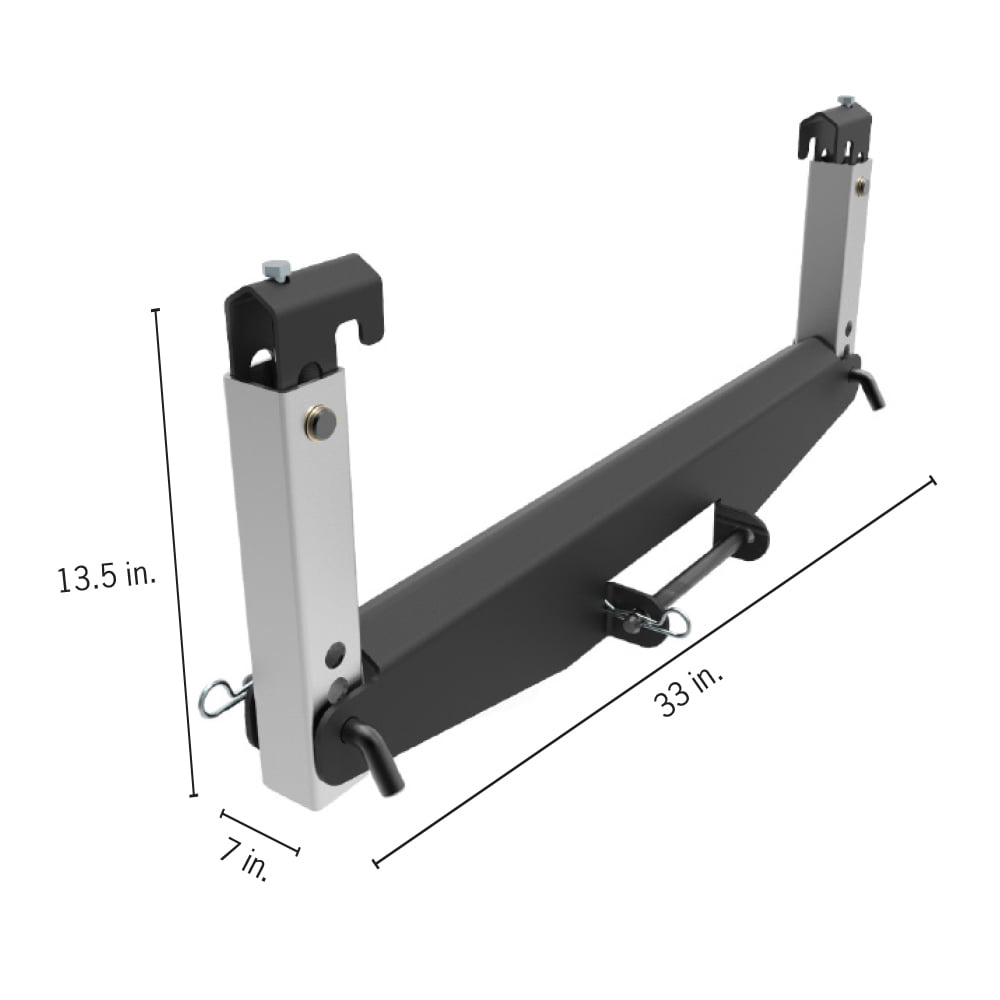

The PowerMast side mount t-bracket features a quick-attach mount system, fastening to the platform support with two quick-locking pins. It allows the climbing unit to be mounted on the end of a platform, freeing up space on the sides of the platform for more wall access. This bracket accommodates most platform and rail systems.
Product Dimensions: 33 in. (838 mm) x 7 in. (178 mm) x 13.5 in. (343 mm)
Shipping Dimensions: 36 in. (914 mm) x 7 in. (178 mm) x 7 in. (178 mm)
Shipping Weight: 25 lbs (11 kg)

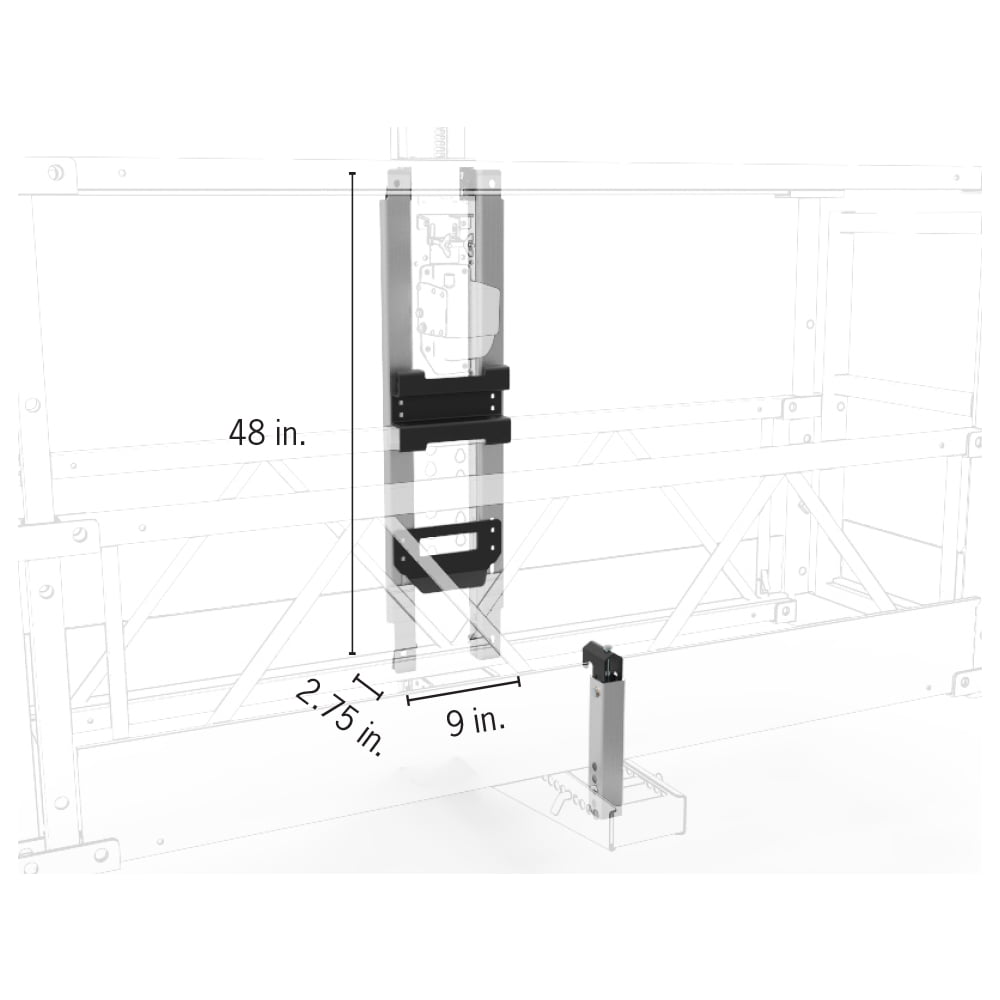

The single mount platform assembly attaches to the PowerMast climbing unit and allows the attachment of platforms from manufacturers other than ReechCraft. It features a rigid aluminum construction and easy assembly thanks to its quick-attach design.
Product Dimensions: 9 in. (229 mm) x 2.8 in. (70 mm) x 48 in. (1219 mm)
Shipping Dimensions: 9.5 in. (241 mm) x 6 in. (152 mm) x 48.5 in. (1232 mm)
Shipping Weight: 25 lbs (11 kg)

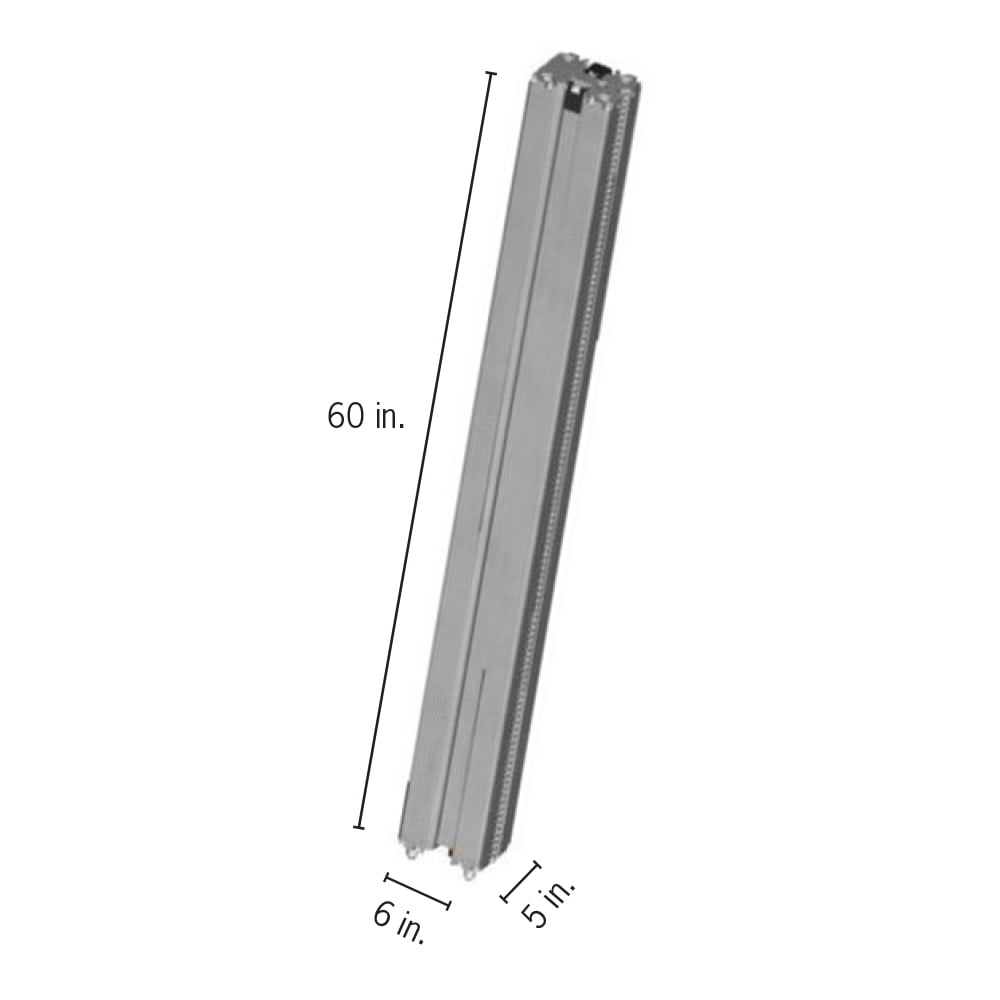

The PowerMast features a quick, tools-free connection to ensure efficiency and safety while stacking masts. Each high-strength, aluminum alloy mast includes an automatic over-top stop and a redundant locking feature that requires each mast connection to be locked in place before raising the climbing unit.
Product Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 60 in. (1524 mm)
Shipping Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 60 in. (1524 mm)
Shipping Weight: 35 lbs (16 kg)

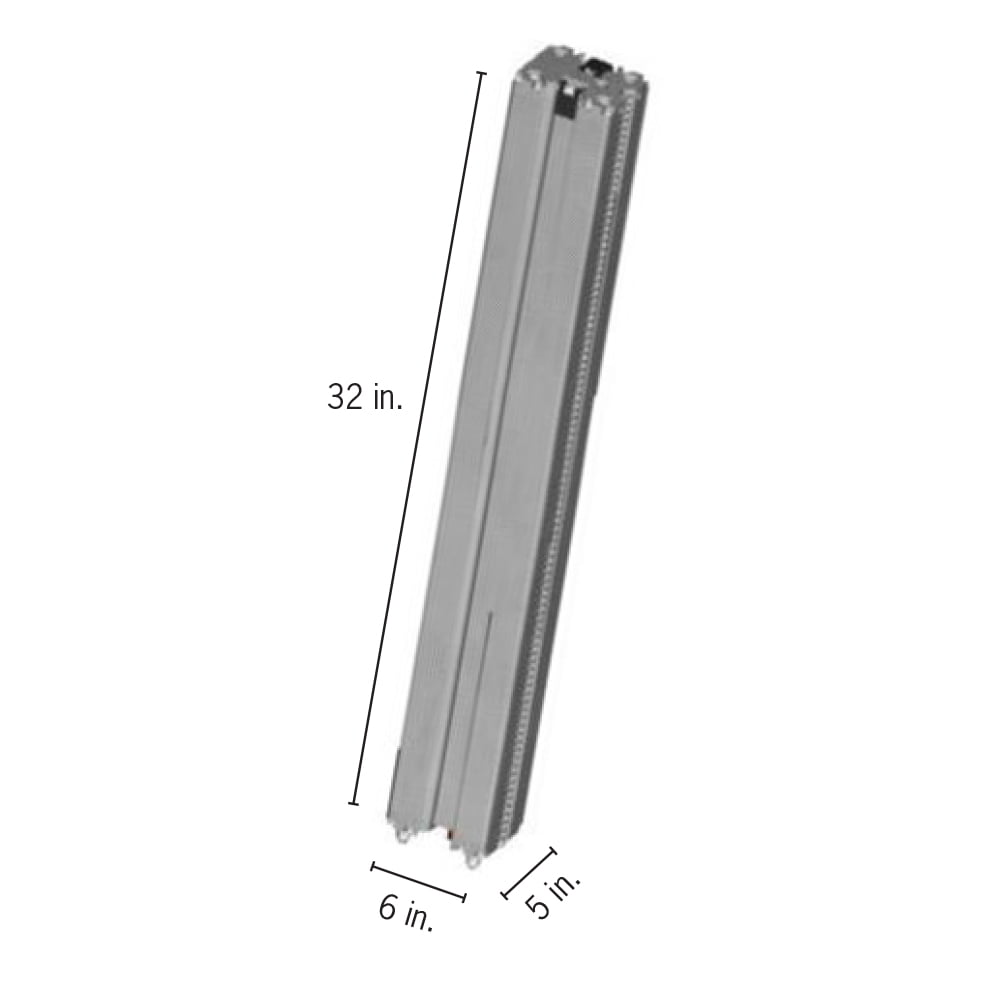

The PowerMast features a quick, tools-free connection to ensure efficiency and safety while stacking masts. Each high-strength, aluminum alloy mast includes an automatic over-top stop and a redundant locking feature that requires each mast connection to be locked in place before raising the climbing unit.
Product Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 32 in. (813 mm)
Shipping Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 32 in. (813 mm)
Shipping Weight: 21 lbs (10 kg)

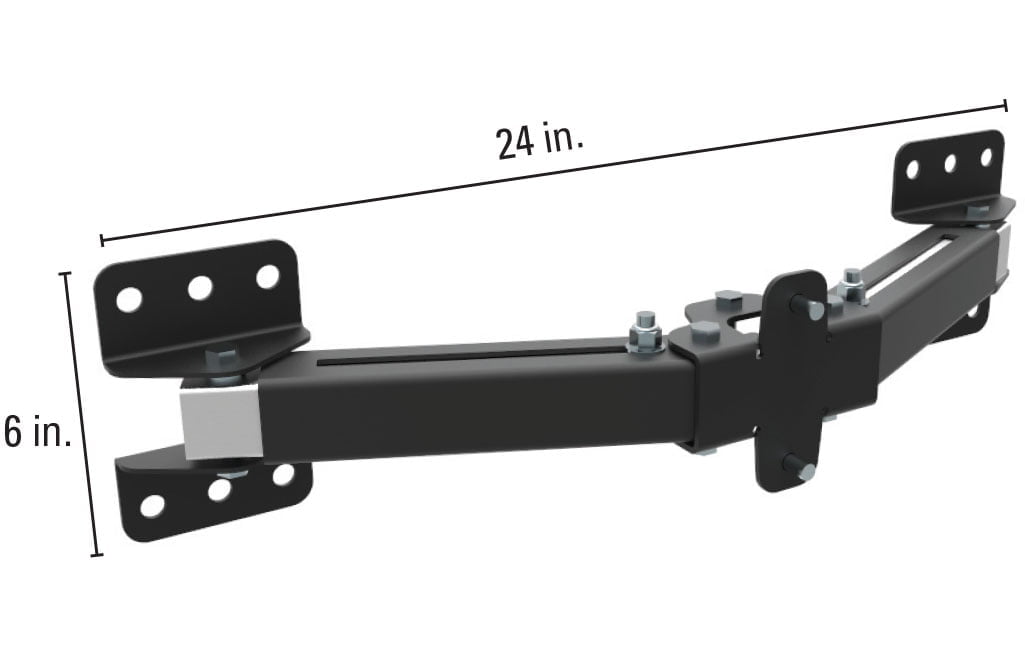

The PowerMast adjustable tie provides a wide variety of attachment options for the PowerMast system. Bring the mast 6 to 16 inches (152-406 mm) away from the wall with this bracket, or purchase extra extension tubes to extend even further. The adjustable tie folds in half for easy storage.
Adjustment: 6-16 in. (152-406 mm)
Product Dimensions: 24 in. (610 mm) x 6 in. (152 mm) x 6 in. (152 mm)
Shipping Dimensions: 17 in. (432 mm) x 6 in. (152 mm) x 6.5 in. (165 mm)
Shipping Weight: 8 lbs (4 kg)

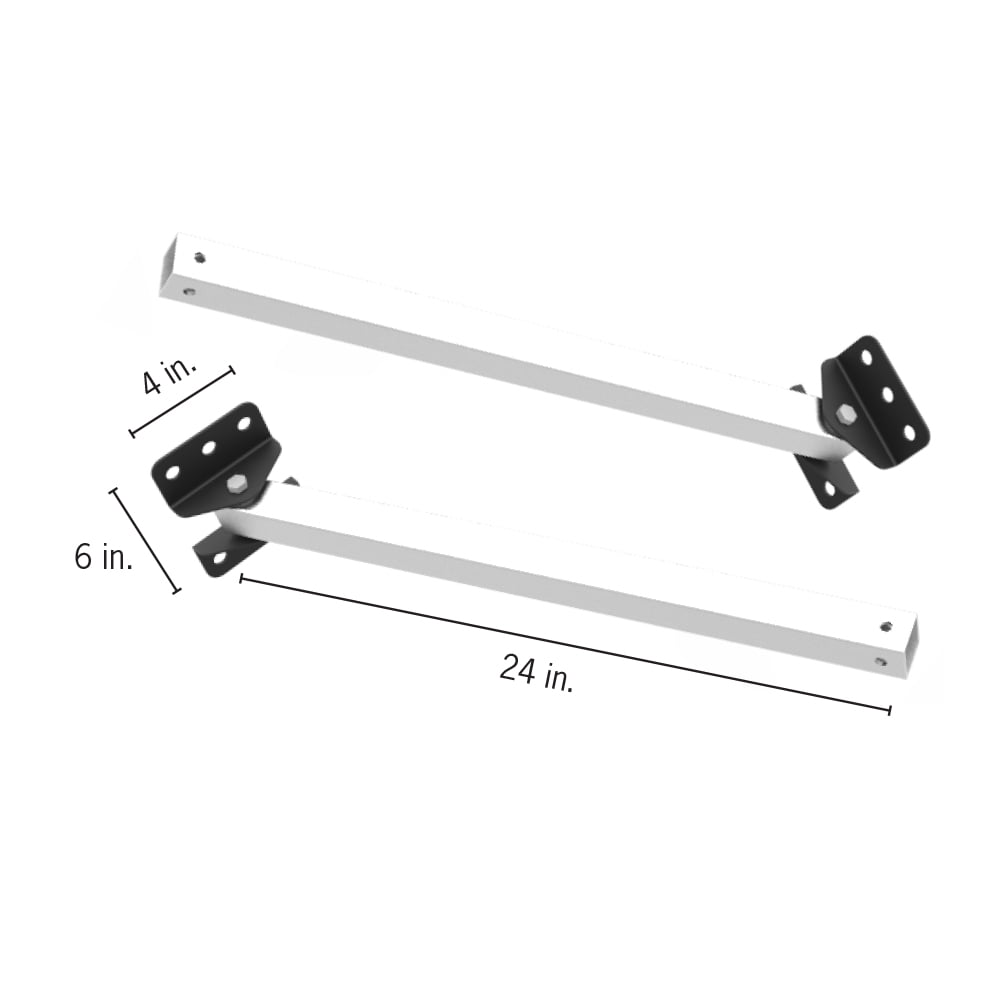

The PowerMast tie extensions replace the standard tubes on the adjustable tie (4026377) to mount further from the wall for large wall obstructions or offsets. Three sizes of tie extensions are available to meet your project needs.
Adjustment: 12-29 in. (305-737 mm)
Product Dimensions: 24 in. (610 mm) x 4 in. (102 mm) x 6 in. (152 mm)
Shipping Dimensions: 26 in. (660 mm) x 6.5 in. (165 mm) x 6 in. (152 mm)
Shipping Weight: 5 lbs (2 kg)
The PowerMast tie extensions replace the standard tubes on the adjustable tie (4026377) to mount further from the wall for large wall obstructions or offsets. Three sizes of tie extensions are available to meet your project needs.
Adjustment: 18-42 in. (457-1067 mm)
Product Dimensions: 39 in. (991 mm) x 4 in. (102 mm) x 6 in. (152 mm)
Shipping Dimensions: 44 in. (1118 mm) x 7.75 in. (197 mm) x 6 in. (152 mm)
Shipping Weight: 5.5 lbs (2 kg)
The PowerMast tie extensions replace the standard tubes on the adjustable tie (4026377) to mount further from the wall for large wall obstructions or offsets. Three sizes of tie extensions are available to meet your project needs.
Adjustment: 24-55 in. (610-1397 mm)
Product Dimensions: 53 in. (1346 mm) x 4 in. (102 mm) x 6 in. (152 mm)
Shipping Dimensions: 73 in. (1854 mm) x 7.3 in. (185 mm) x 3.2 in. (81 mm)
Shipping Weight: 5.75 lbs (3 kg)

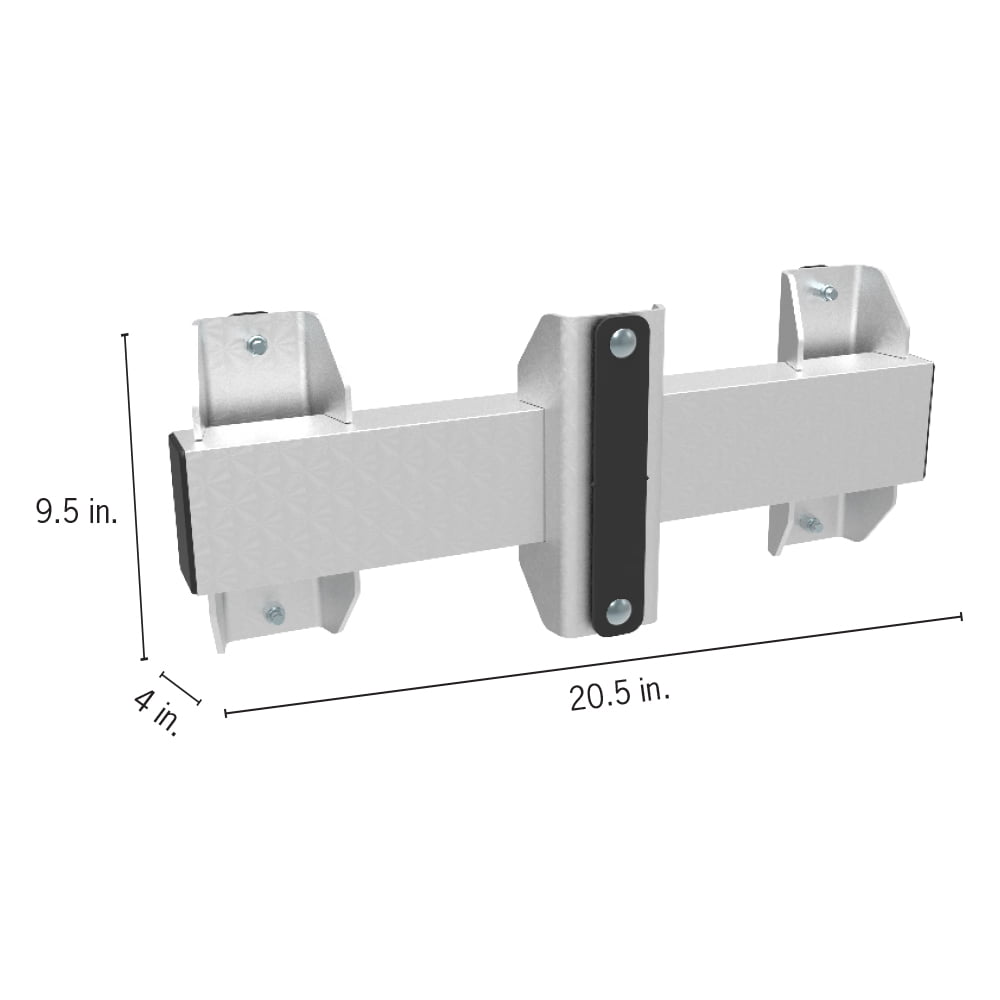

The PowerMast freestanding tri-mast tie holds three masts together for rigid support between mast sections when used in conjunction with the freestanding base.
Product Dimensions: 20.5 in. (521 mm) x 4 in. (102 mm) x 9.5 in. (241 mm)
Shipping Dimensions: 21 in. (533 mm) x 4 in. (102 mm) x 10 in. (254 mm)
Shipping Weight: 12 lbs (5 kg)

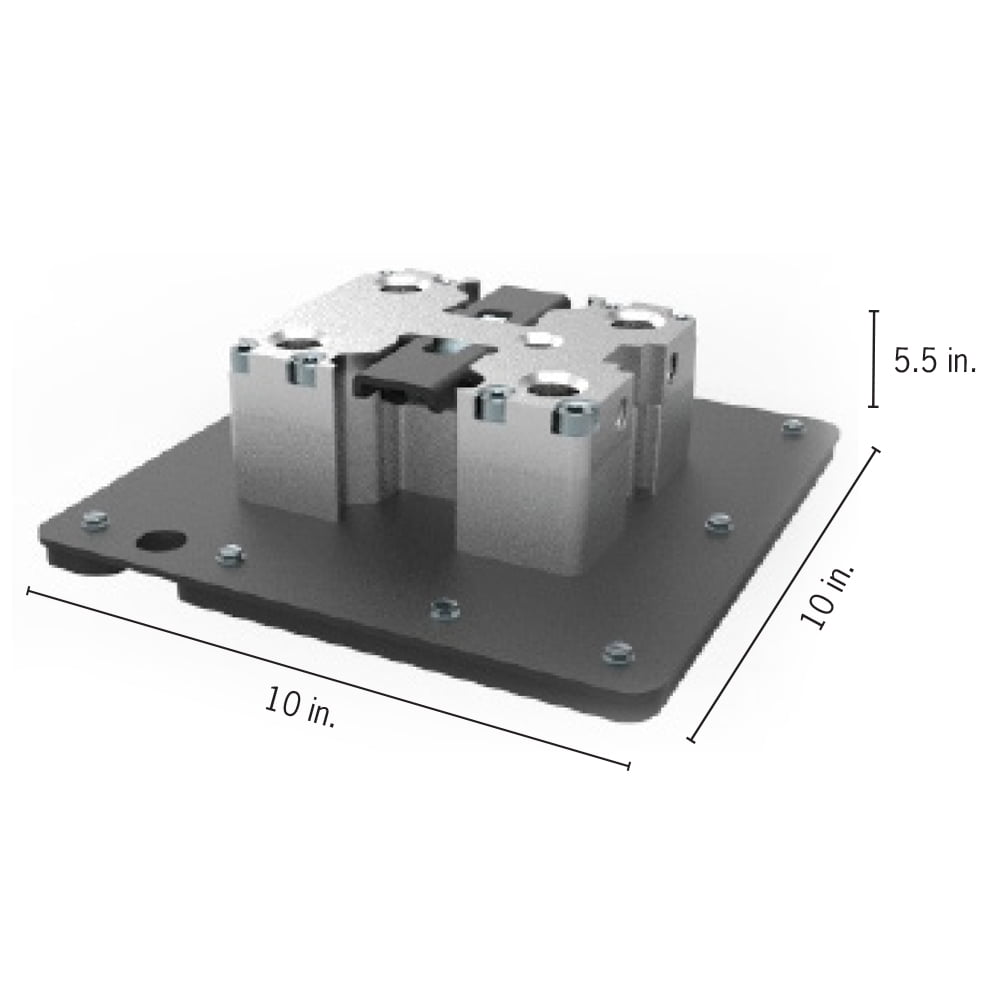

The PowerMast base foot uses the same tools-free quick connection as the masts and provides stable footing for the masts. This base features a heavy-duty rubber backing and can be anchored to the ground surface.
Product Dimensions: 10 in. (254 mm) x 10 in. (254 mm) x 5.5 in. (140 mm)
Shipping Dimensions: 11 in. (279 mm) x 11 in. (279 mm) x 4 in. (102 mm)
Shipping Weight: 10 lbs (4 kg)

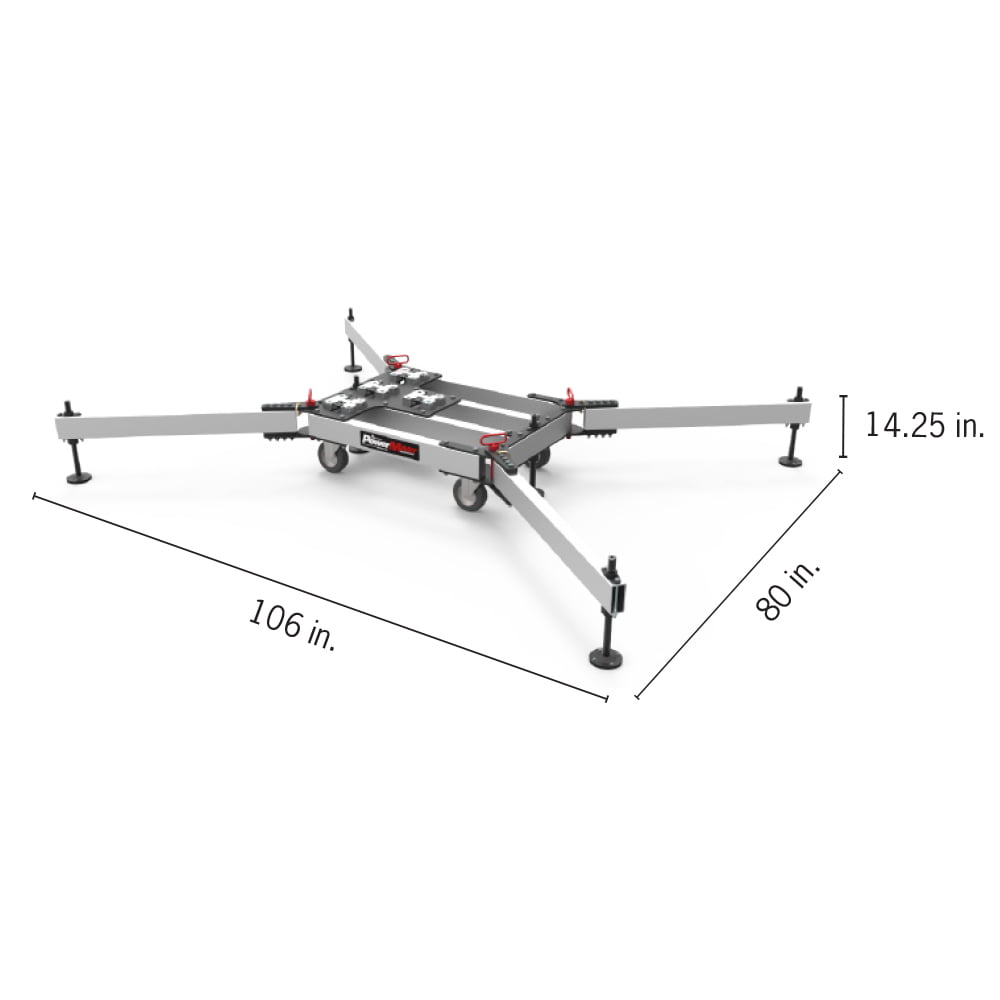

The PowerMast freestanding base allows three mast sections to be mounted as a rigid column, providing added stability without the need of wall support. This base features adjustable outriggers for easy positioning and is portable and useful in many situations.
Product Dimensions: 106 in. (2692 mm) x 80 in. (2032 mm) x 14.25 in. (362 mm)
Shipping Dimensions: 101 in. (2565 mm) x 75 in. (1905 mm) x 15 in. (381 mm)
Shipping Weight: 267 lbs (121 kg)

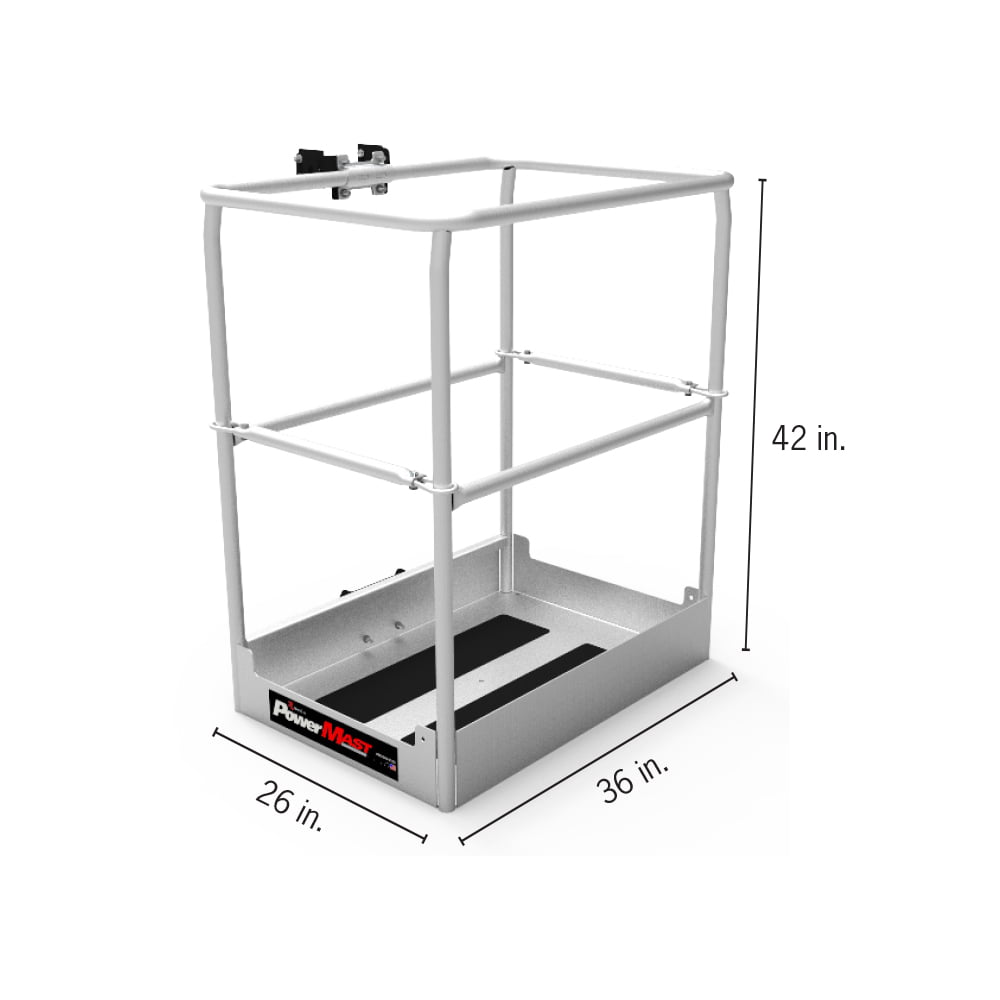

The highly portable single person platform features a quick-attach design and can be used with the standard or freestanding PowerMast configuration. The platform fits one person, weighs just 35 pounds (16 kg), and can be entered from either side.
Product Dimensions: 36 in. (914 mm) x 26 in. (660 mm) x 42 in. (1067 mm)
Shipping Dimensions: 42 in. (1067 mm) x 38 in. (965 mm) x 47 in. (1194 mm)
Shipping Weight: 60 lbs (27 kg)
