ReechCraft PowerPole
Components and Accessories
PowerPole accessories include a wide variety of components that provide added benefits based on what each user needs. Start with the PowerPole’s Standard System and add any of our PowerPole accessory attachments for more speed, safety or versatility.

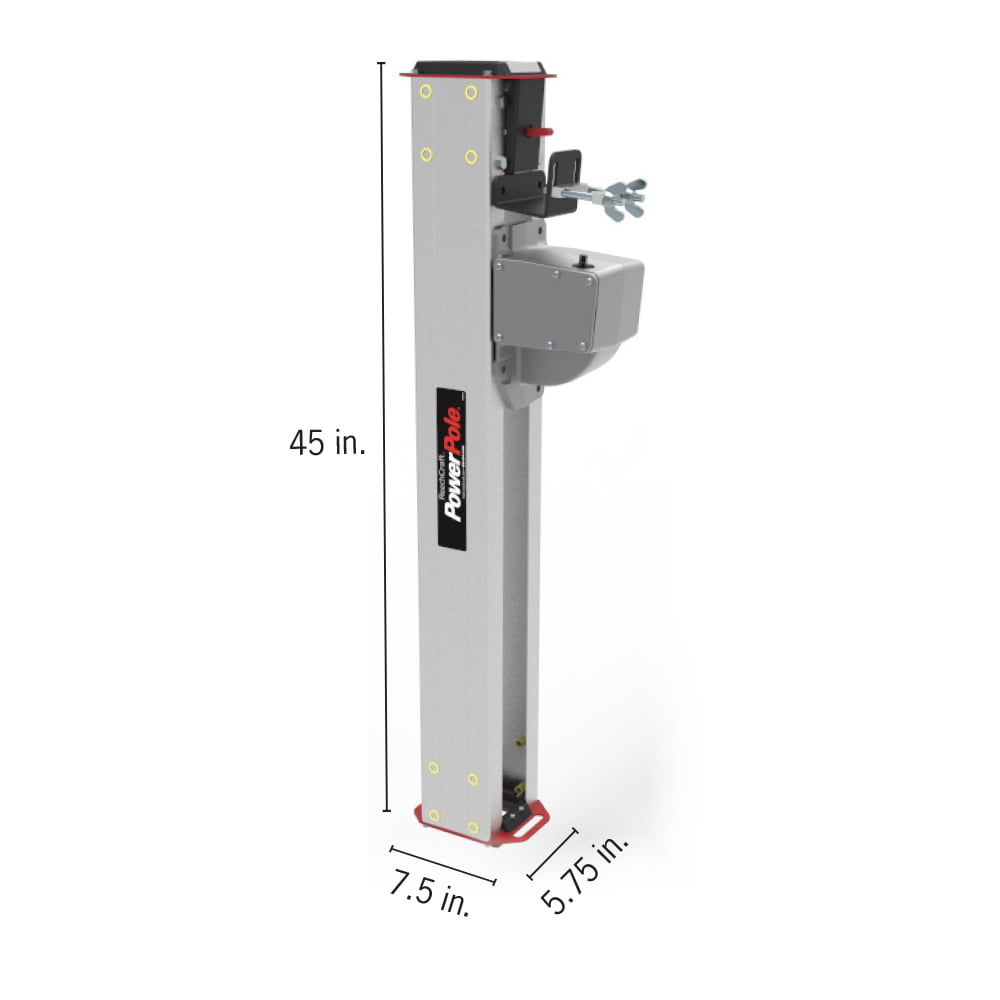

PowerPole Climbing Unit
The PowerPole Climbing Unit enables the climbing capabilities of the PowerPole System. Powered by a 1/2 in. drill, the 650 lb load-rated PowerTrak system offers extreme performance in a compact package, providing all the capacity needed to lift workers, tools and materials into position. Each climbing unit is equipped with a gearbox to power the unit and a drill brace to secure the drill. Build your own system by bolting on your choice of platform supports and accessories for a wide variety of tasks. The PowerPole gearbox includes an integrated overspeed brake for added safety.
Features:
• Lightweight Efficient Design
• Durable Construction
• Safety Locking Pawl
• Lightweight Efficient Design
• Durable Construction
• Safety Locking Pawl
Box Dimensions: 53 in. x 7 in. x 18 in.
Shipping Weight: 29 lbs

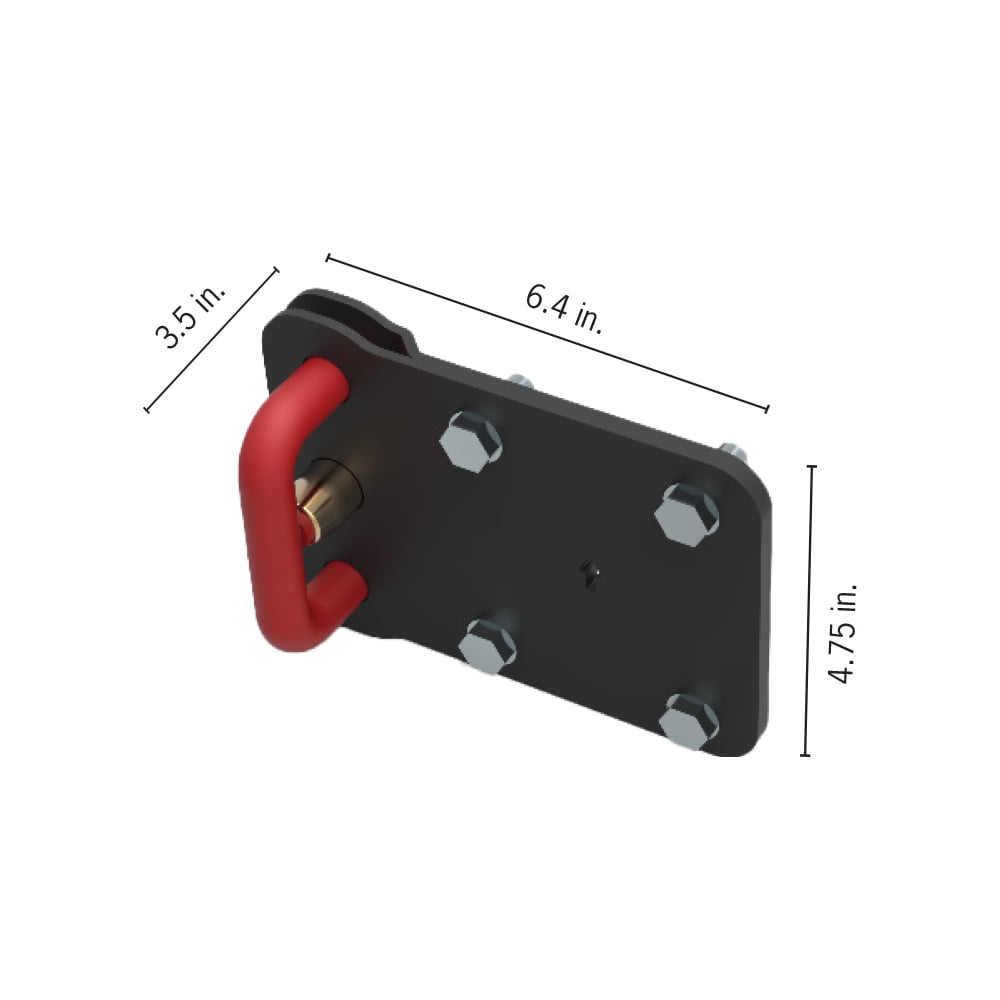

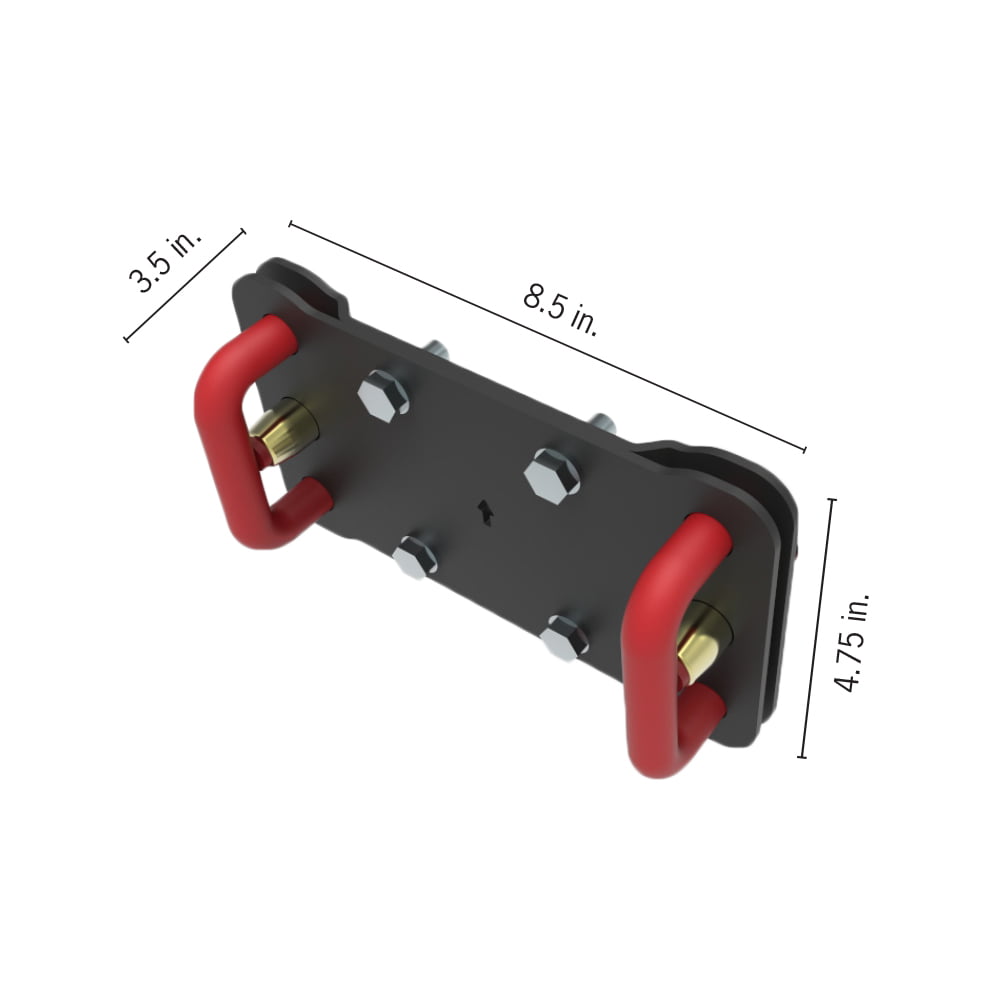

PowerLatch Assembly
Upgrade the PowerPole Climbing Unit with this quick latch system. Quickly reconfigure the PowerPole for a variety of jobs by connecting platform and workbench supports or a man basket. Transporting the PowerPole is easier since attachments are removed leaving the slender and compact climbing unit on the pole. Choose the Single-Sided PowerLatch for most applications, or the Double-Sided PowerLatch to connect a Platform support on each side of the climbing unit or to use our single man basket. If you need ultimate flexibility on platform, attachment and transportation options, the PowerLatch is for you.
Features
• “Tools-Free” Quick Attach Design
• Standard Multi-Attachment Interface
• Heavy-Duty Dual Safety Pins
• “Tools-Free” Quick Attach Design
• Standard Multi-Attachment Interface
• Heavy-Duty Dual Safety Pins
Box Dimensions: 10 in. x 6.5 in. x 6.5 in.
Shipping Weight: 8 lbs
Platform Support
The Platform Support is used for dual mast configurations. With 11 in. of adjustment, this support accommodates a wide range of standard work platforms from 12 in. to 24 in.
Features
• 12 in. of Tools-Free Adjustment
• Supports a Wide Variety of Platforms
• Universal Platform Tie Chain Included
• 12 in. of Tools-Free Adjustment
• Supports a Wide Variety of Platforms
• Universal Platform Tie Chain Included
Box Dimensions: 21 in. x 10 in. x 10 in.
Shipping Weight: 12 lbs

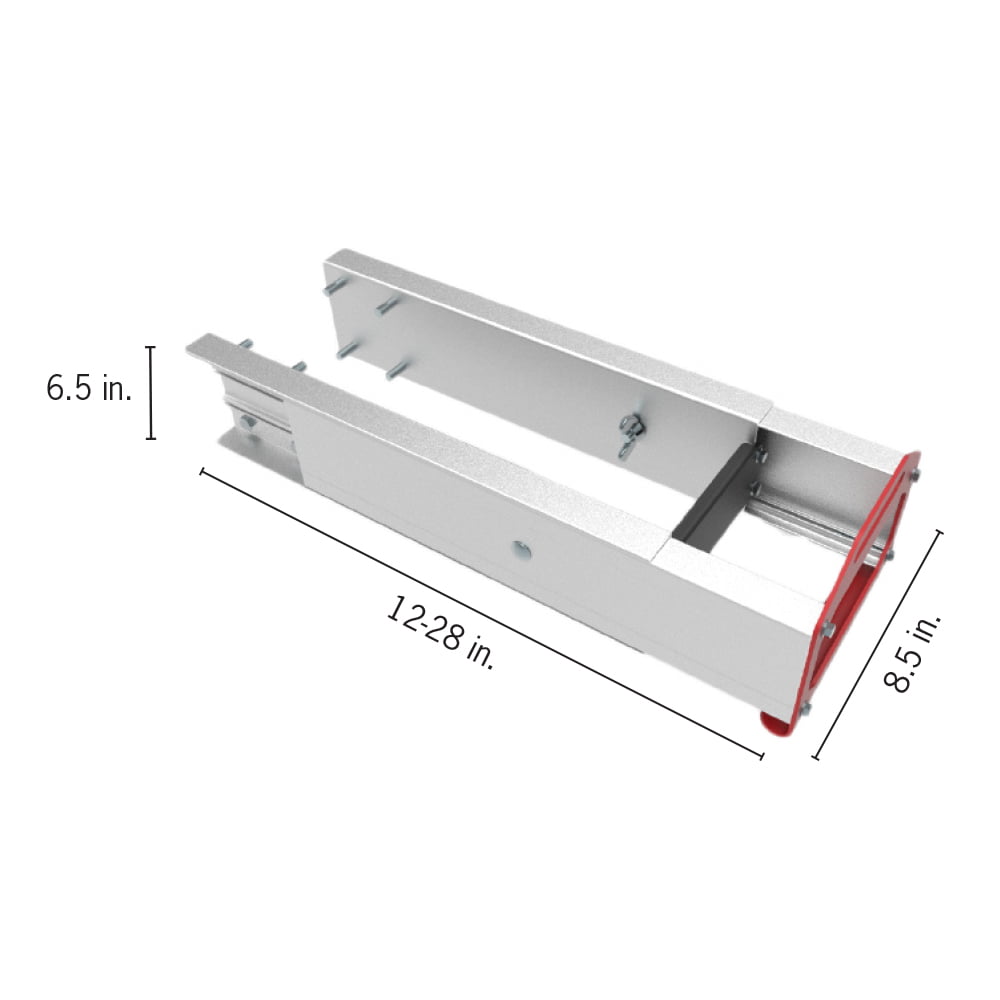

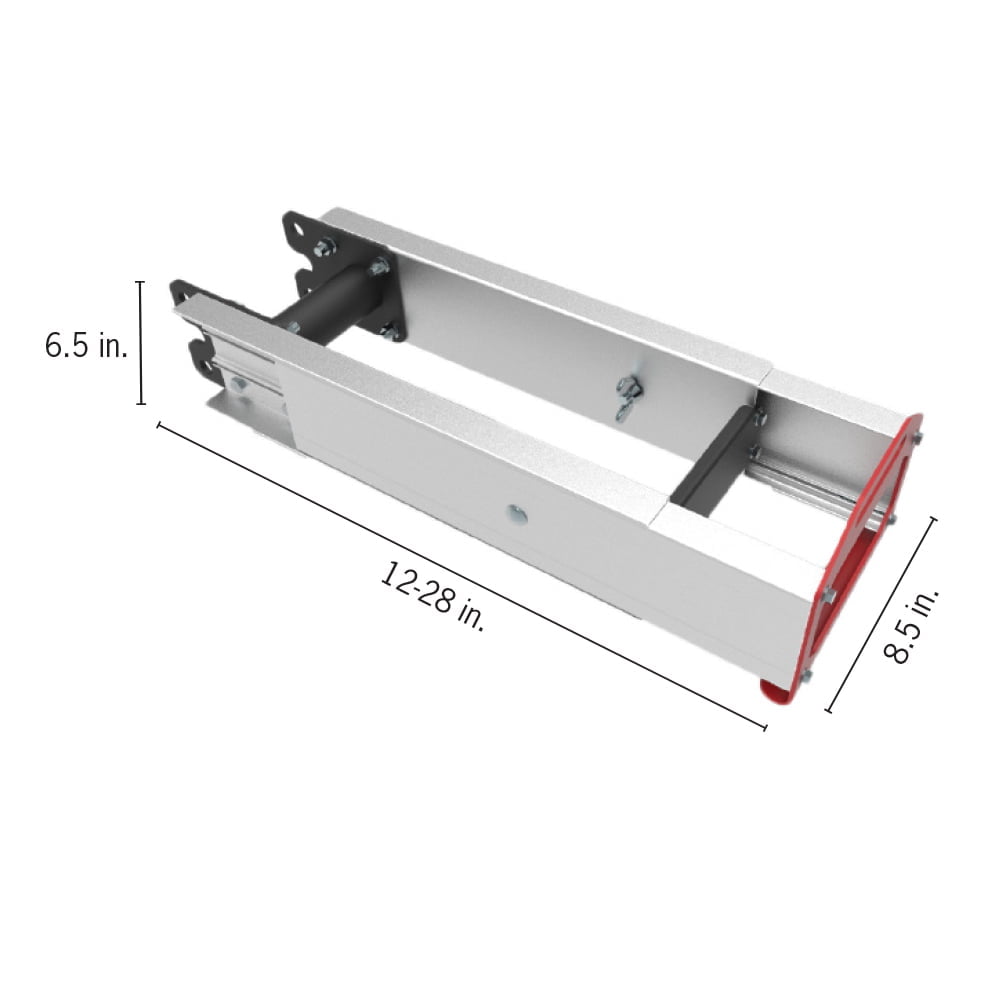

Platform Support with PowerLatch Connector
The Platform Support is used for dual mast configurations and is installed with the PowerLatch Connector. With 11 in. of adjustment, the Platform Support is easily used with the PowerLatch Assembly to accommodate a wide range of standard work platforms from 12 in. to 28 in.
Features
• 16 in. of Tools-Free Adjustment
• Supports a Wide Variety of Platforms
• Universal Platform Tie Chain Included
• 16 in. of Tools-Free Adjustment
• Supports a Wide Variety of Platforms
• Universal Platform Tie Chain Included
Box Dimensions: 21 in. x 10 in. x 10 in.
Shipping Weight: 16 lbs

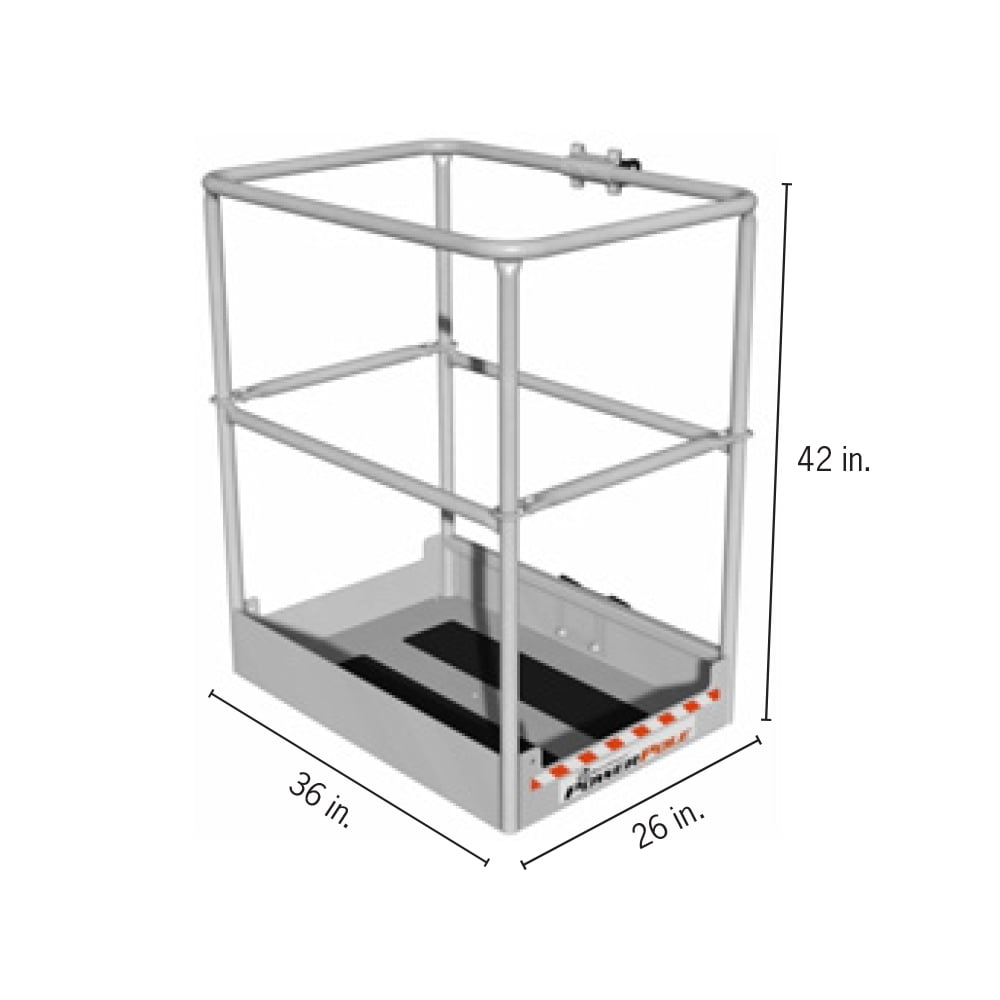

Single Man Basket
The PowerPole with Basket attachment is truly a product of its own. When used with the PowerPole Outrigger attachment, you can set up a single mast in a few minutes and work at heights of up to 24 ft with no wall ties. Other configurations allow heights up to 75 ft. The Basket features dual entry and a large 36 in. wide by 26 in. deep work area, providing ample working space for you and your tools. The basket quickly attaches to the climbing unit via the PowerLatch interface. Choose the basket for fast single worker access.
Features
• Dual Side Entry
• Highly Portable
• Quick Attach Design
• Dual Side Entry
• Highly Portable
• Quick Attach Design
Box Dimensions: 42 in. x 38 in. x 47 in.
Shipping Weight: 60 lbs

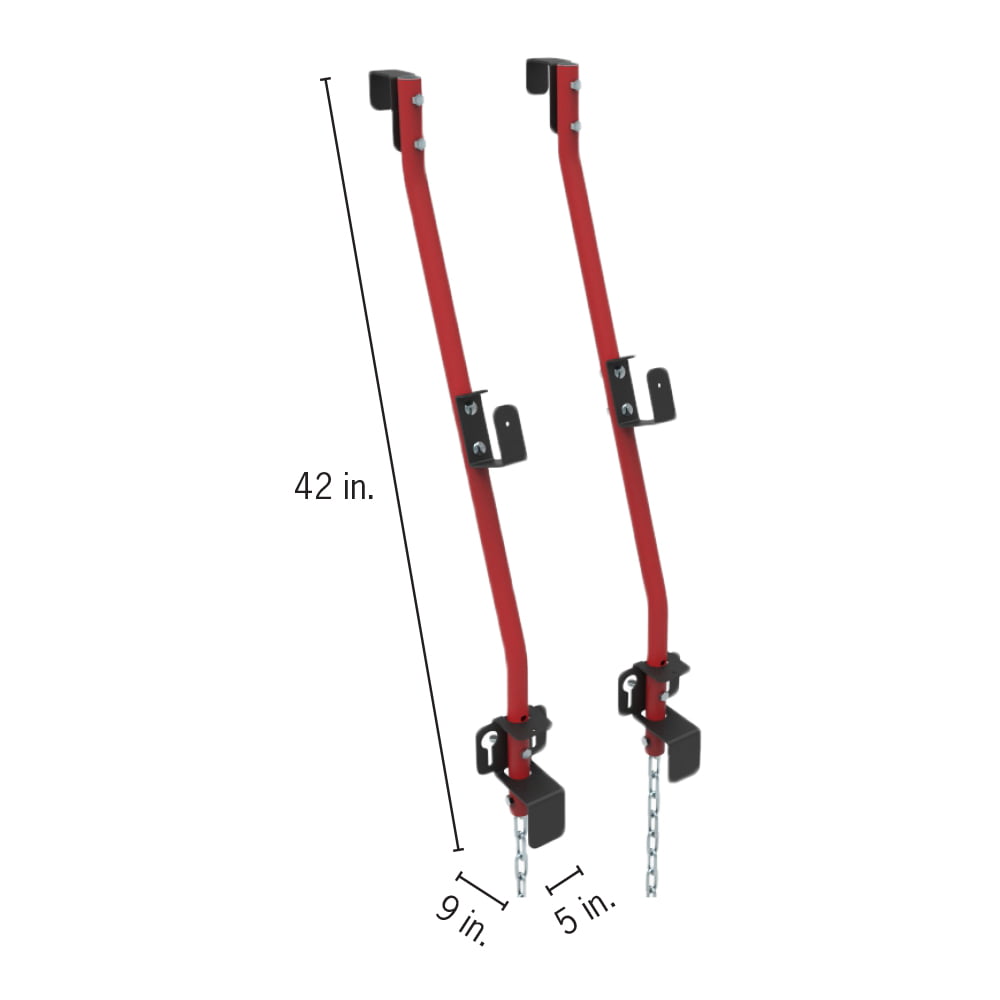

SpeedRail Midrail Post (Two-Pack)
The midrails attach to the workbench and mount to the walkboard securely with a chain. The posts are placed 8 ft apart or less. Wooden 2×4’s are then mounted to the midrail post, to complete the midrail and toerail.
Features
• No-Tools Connection
• Fits Stages from Leading Manufacturers
• No-Tools Connection
• Fits Stages from Leading Manufacturers
Box Dimensions: 5.25 in. x 48 in. x 10 in.
Shipping Weight: 17 lbs

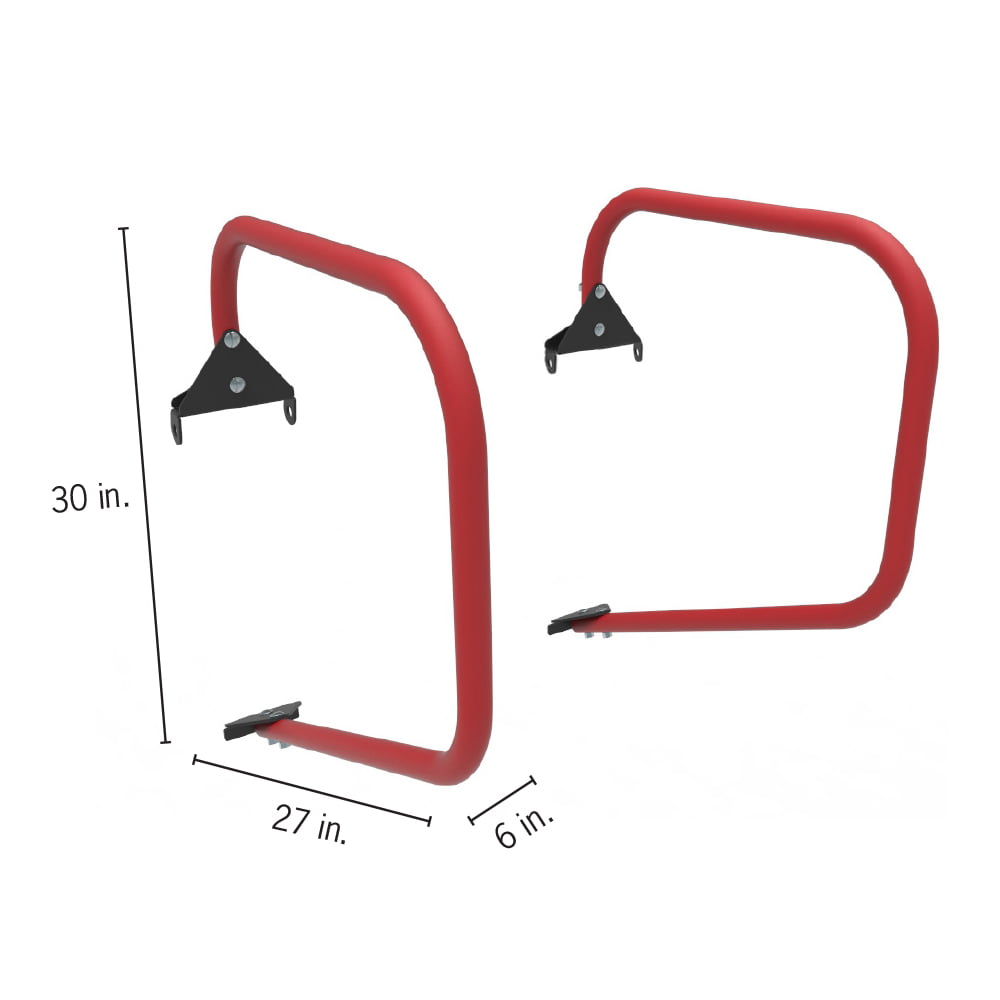

SpeedRail Endrail (Two-Pack)
The endrails fasten to the Climbing Unit with the PowerLatch.
Features
• No-Tools Connection
• Works with Any Stage (PowerPole Configuration)
• No-Tools Connection
• Works with Any Stage (PowerPole Configuration)
Box Dimensions: 31.75 in. x 28.5 in. x 5 in.
Shipping Weight: 11 lbs

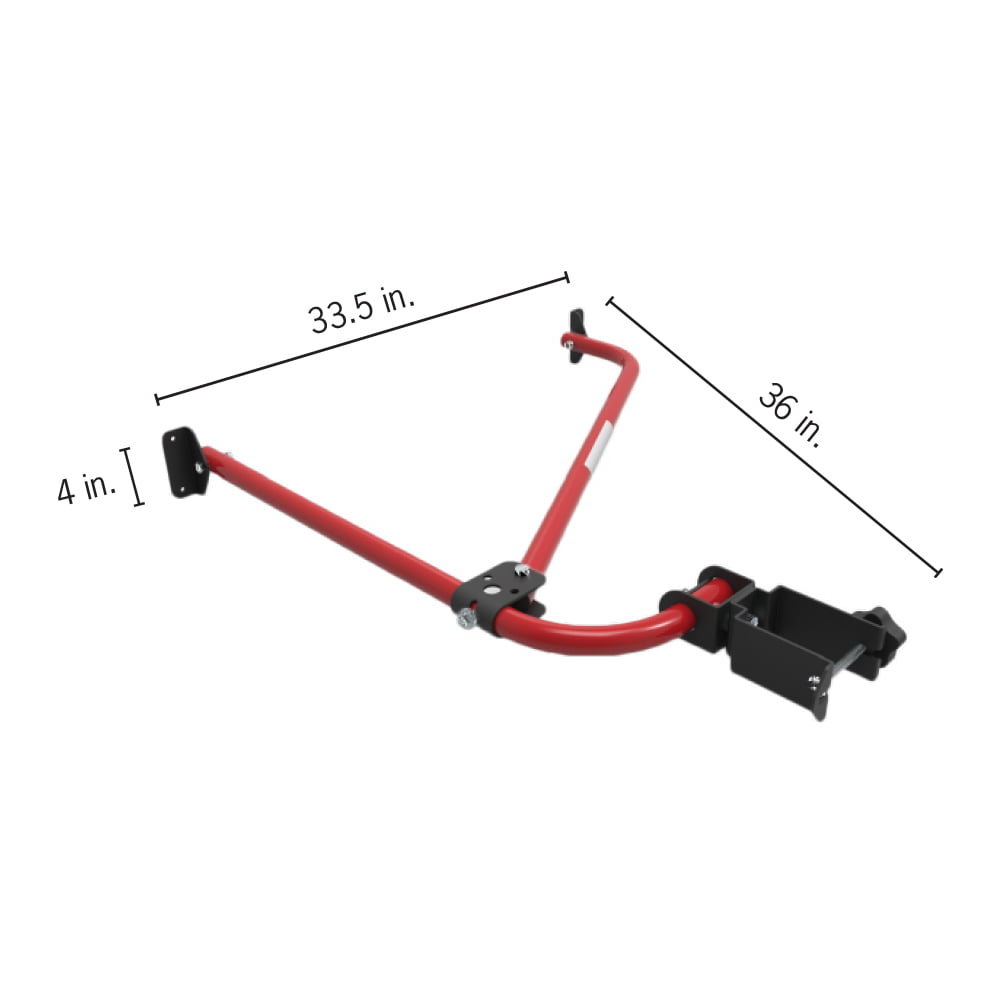

PowerPole Standoff Tie
The Standoff Tie accommodates most pitch roof lines. Standoff line including valleys. It also makes a stable wall tie that will safely secure the PowerPole System to different types of buildings.
Features
• Accommodates Most Pitch Roof Lines
• Light and Durable
• Accommodates Most Pitch Roof Lines
• Light and Durable
Box Dimensions: 46.5 in. x 10.5 in. x 3 in.
Shipping Weight: 12 lbs
PowerPole Super Standoff Tie
The roof tie has extra long tubes to allow roof access. By placing the platform at roof level, the PowerPole Tilt-Up System can serve as roofline fall protection.
Features
• Versatile Design
• Enables Roofline Access
• Versatile Design
• Enables Roofline Access
Box Dimensions: 93 in. x 10.75 in. x 3 in.
Shipping Weight: 20 lbs

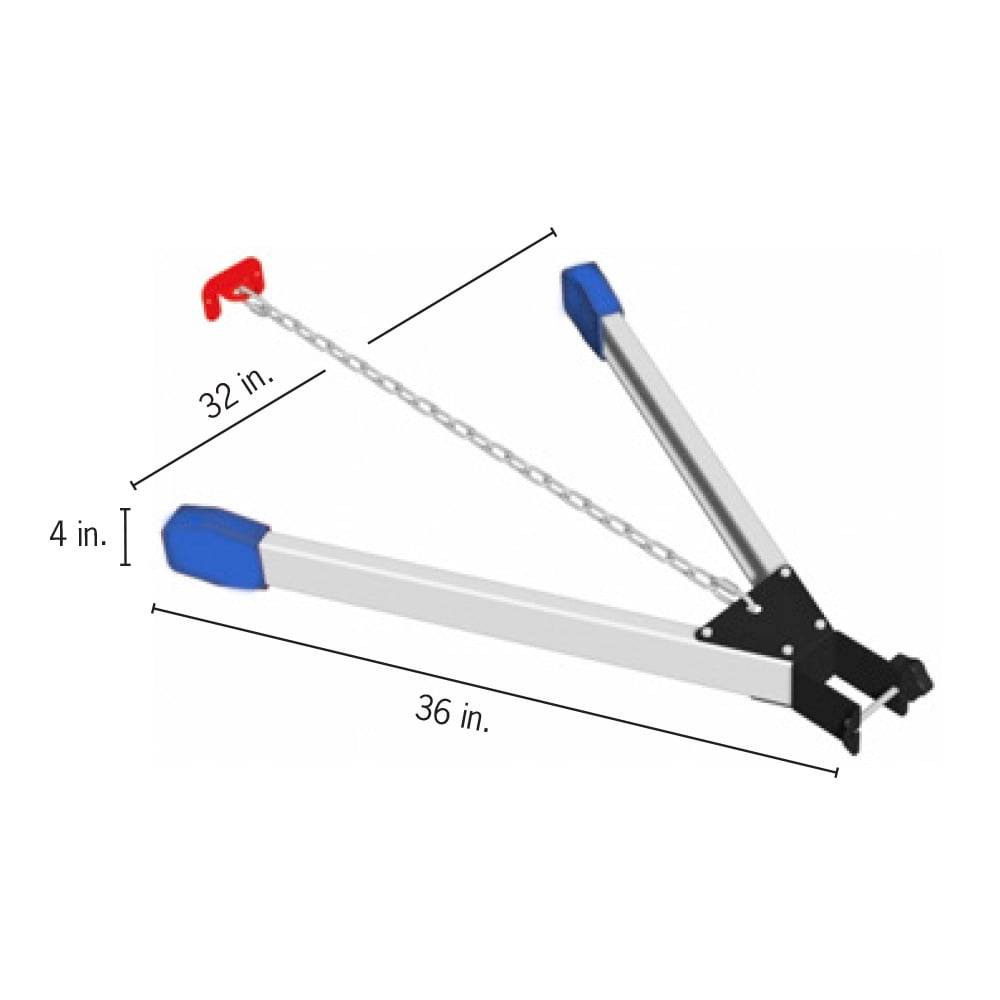

PowerPole V-Brace
The V-Brace tie is used in conjunction with the outrigger base, providing a stable rest for the top of the poles. This tie is light and easy to slide up and down the pole, even while attached to the system. The non-marking bumpers provide cushion for delicate wall surfaces while gripping to the wall for stability. Each V-Brace comes standard with a 500 lb rated ratchet strap and wall anchor plate for use above 24 ft. This V-Brace puts the center of the pole 33 in. from the wall.
Features
• Lightweight Design
• Bumpers Protect Glass or Painted Surfaces
• Lightweight Design
• Bumpers Protect Glass or Painted Surfaces
Box Dimensions: 43 in. x 36 in. x 6 in.
Shipping Weight: 10 lbs

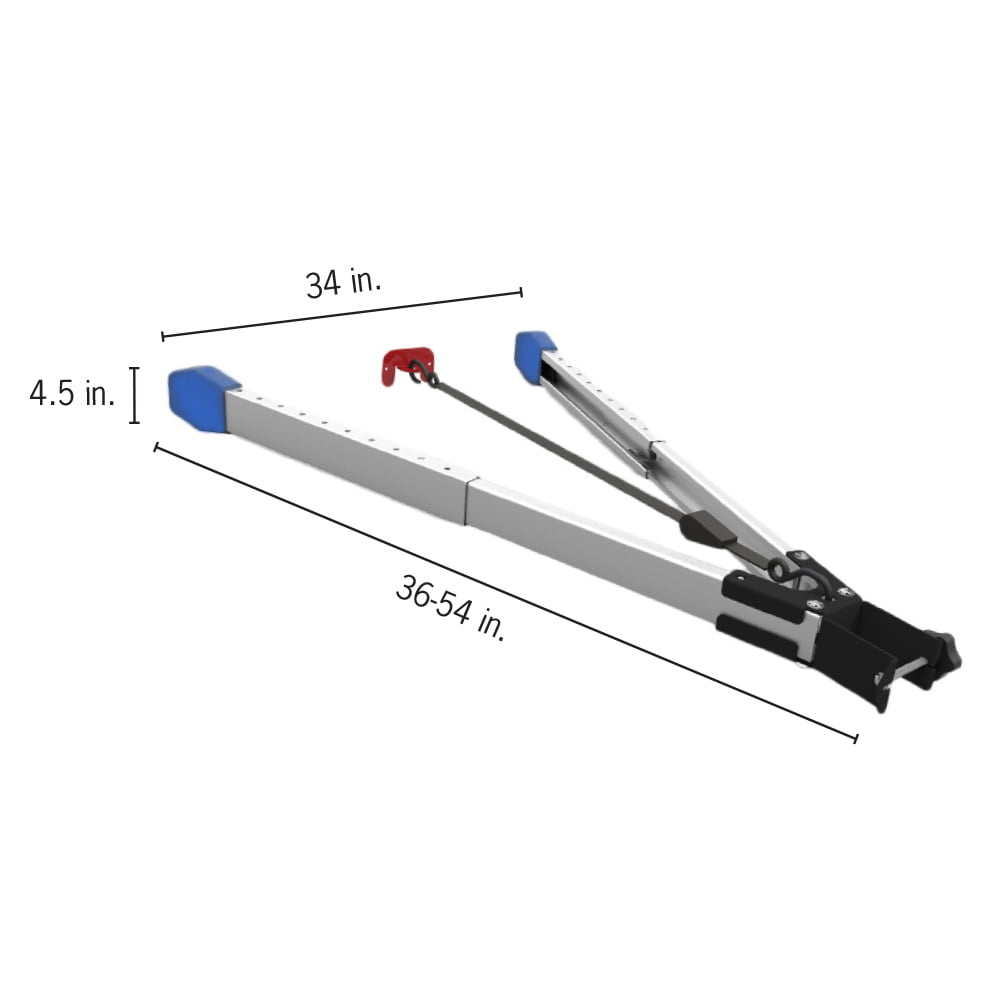

PowerPole Extendable V-Brace
This brace allows you to extend an additional 18 in. and move in 2 in. increments, creating a total wall distance of 51 in. when fully extended. This assembly also folds for easy storage and comes standard with a 500 lb rated ratchet strap and wall anchor plate.
Features
• 18 in. of Adjustment
• Foldable or Compact Transport
• 18 in. of Adjustment
• Foldable or Compact Transport
Box Dimensions: 43 in. x 36 in. x 6 in.
Shipping Weight: 14 lbs

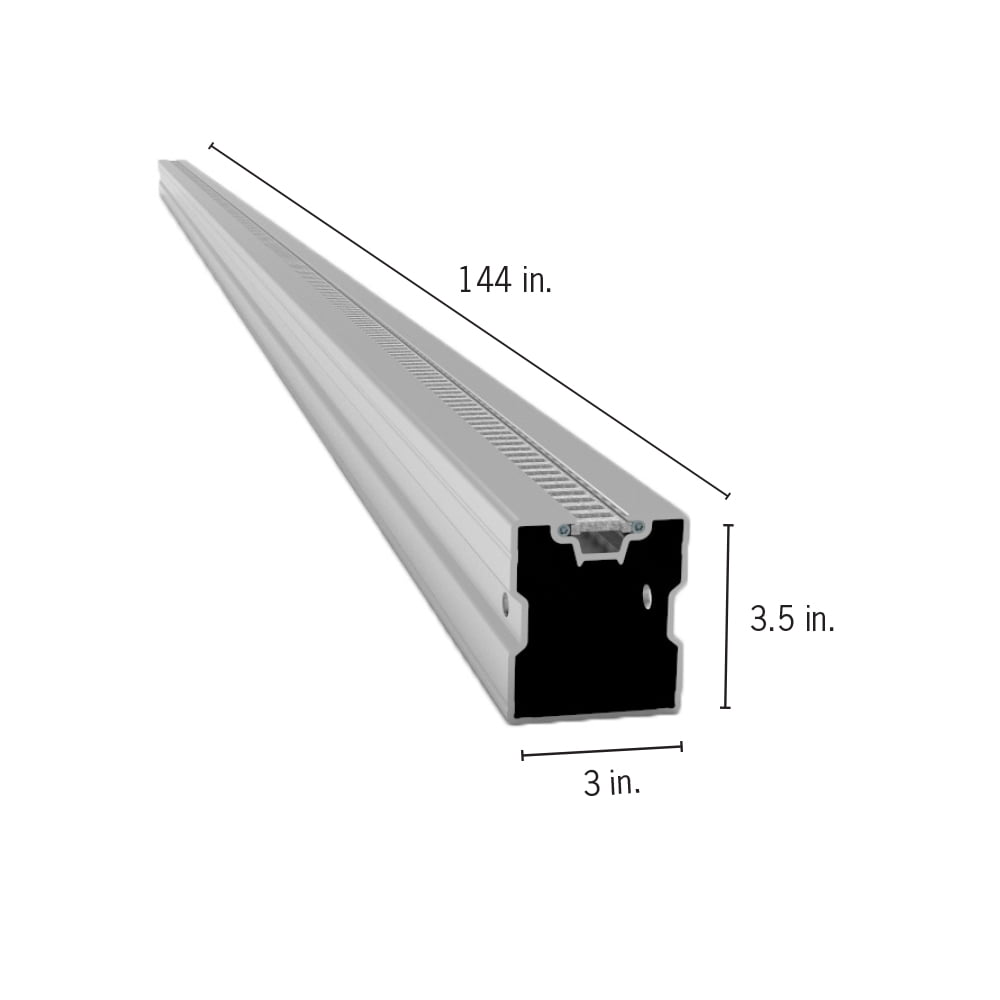

PowerPole 12 ft Pole Section
A PowerPole setup can be constructed in any combination of 6 ft and 12 ft poles. Using 12 ft pole sections will decrease the number of couplers to bolt together, creating a lighter assembly.
Features
• High-Strength Aluminum Alloy Mast
• Galvanized Replaceable Steel Track
• High-Strength Aluminum Alloy Mast
• Galvanized Replaceable Steel Track
Box Dimensions: 144 in. x 3 in. x 3.5 in.
Shipping Weight: 28 lbs

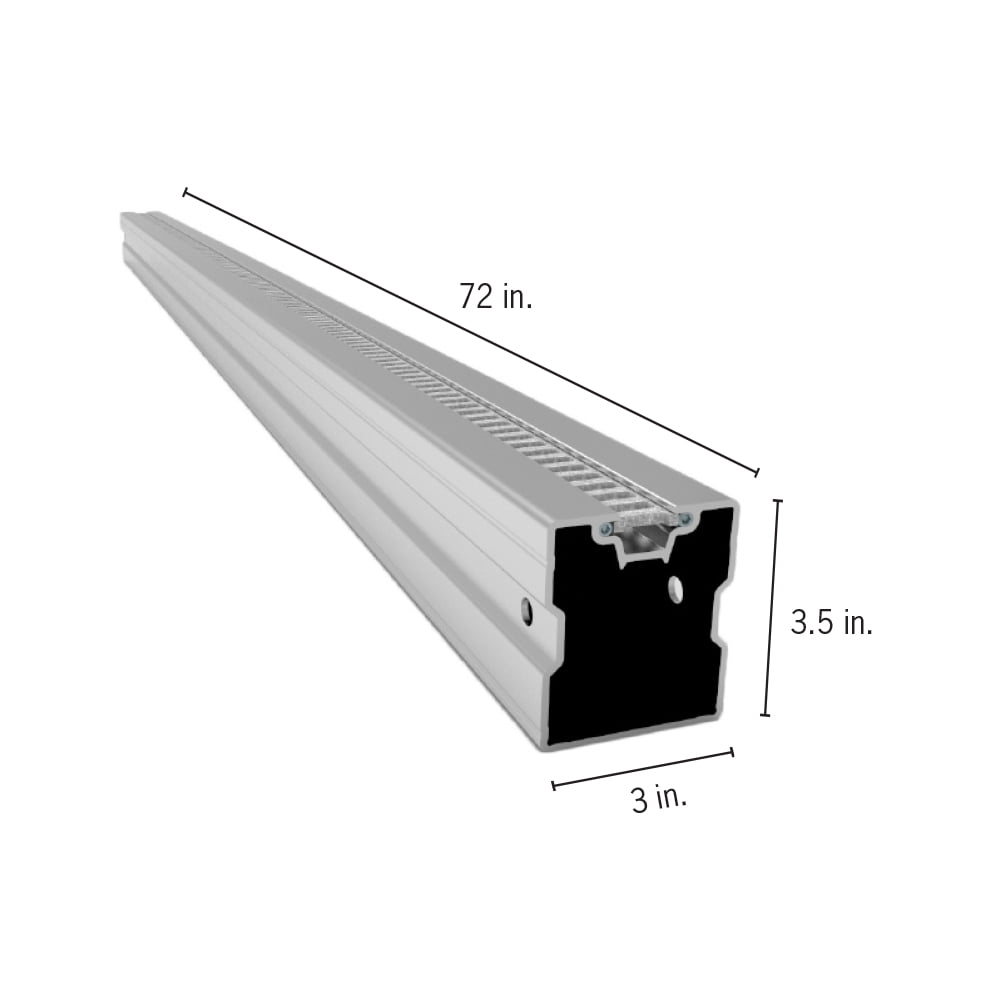

PowerPole 6 ft Pole Section
A PowerPole setup can be constructed in any combination of 6 ft and 12 ft sections. Using 6 ft Pole sections allows for more compact transport and storage, but increases the number of couplers to bolt together.
Features
• High-Strength Aluminum Alloy Mast
• Galvanized Replaceable Steel Track
• High-Strength Aluminum Alloy Mast
• Galvanized Replaceable Steel Track
Box Dimensions: 72 in. x 3 in. x 3.5 in.
Shipping Weight: 14 lbs

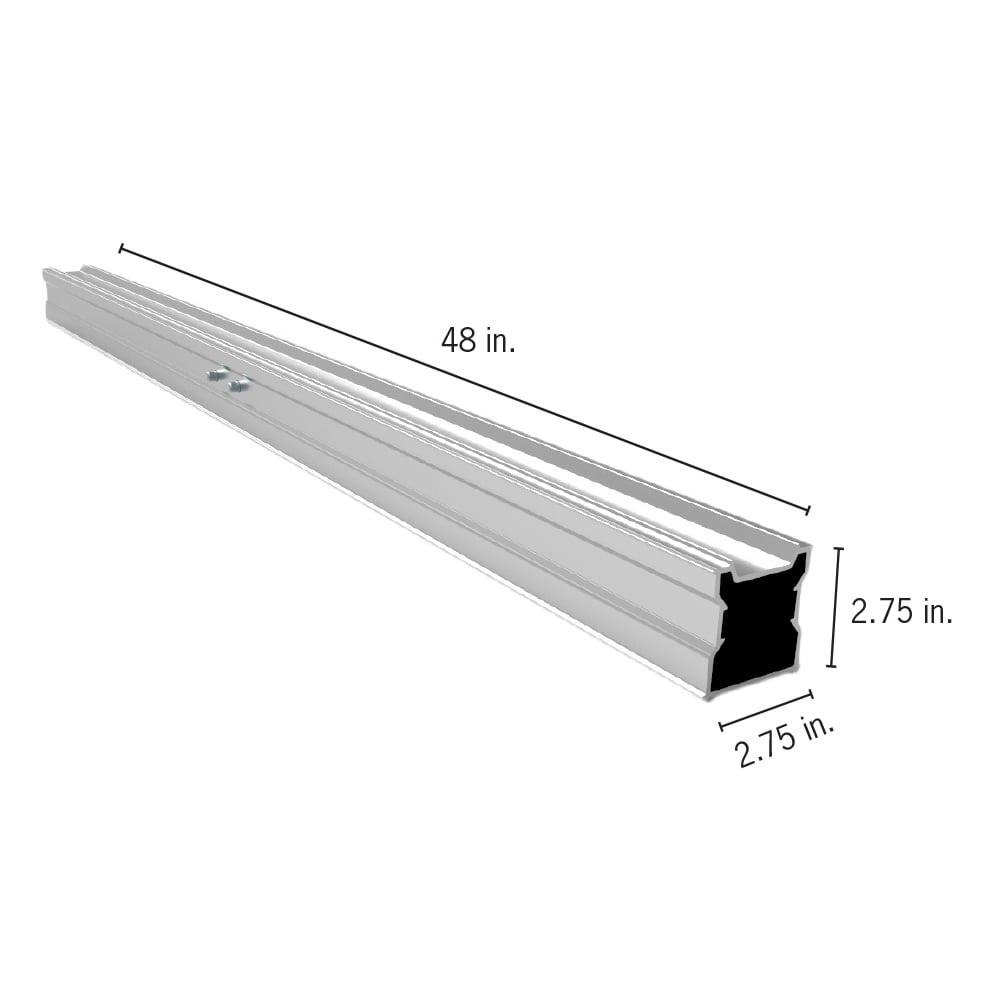

PowerPole Coupler
A PowerPole setup can be constructed in any combination of 6 ft and 12 ft poles. Use this 4 ft pole coupler to connect the mast sections using built-in snap buttons. No tools required.
Features
• High-Strength Aluminum Alloy Mast
• 8 Standard 3/8 x 3/4 Bolts
• High-Strength Aluminum Alloy Mast
• 8 Standard 3/8 x 3/4 Bolts
Box Dimensions: 48 in. x 4.5 in. x 4 in.
Shipping Weight: 5.75 lbs

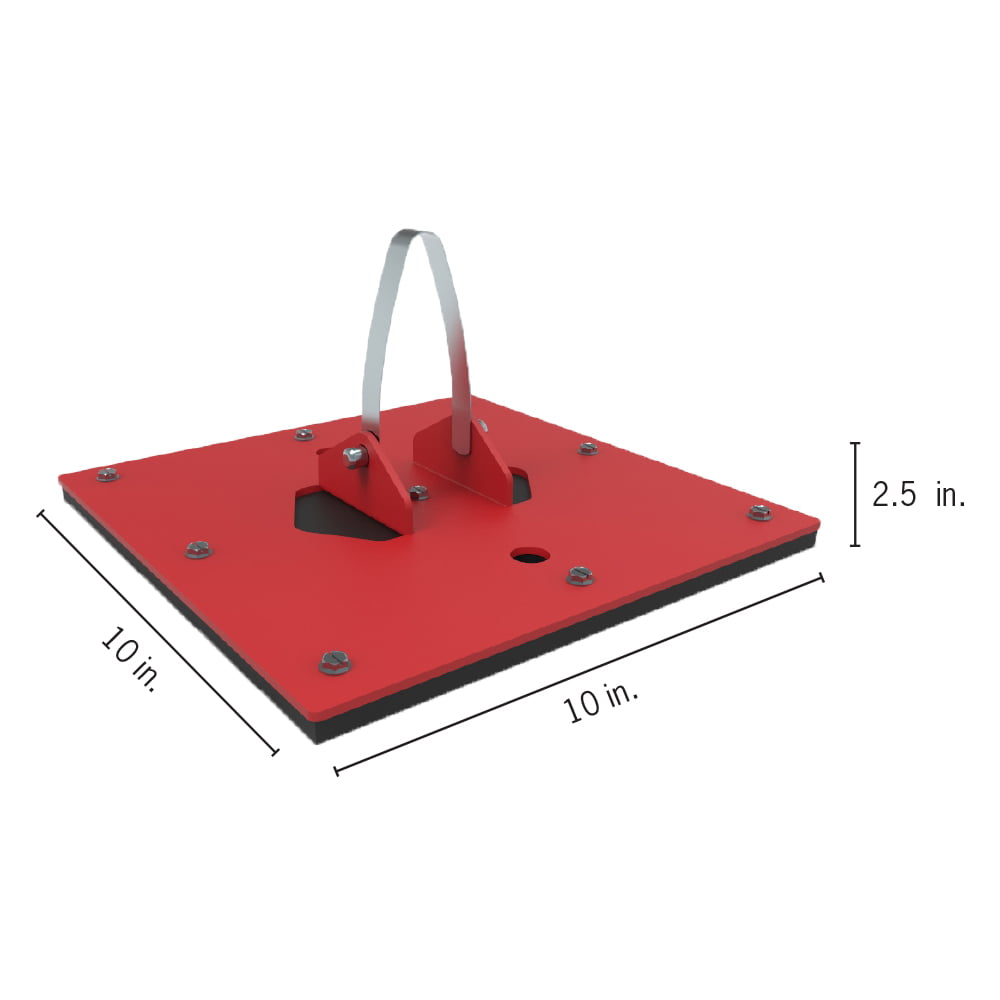

10 in. x 10 in. Base Foot
The 10 in. x 10 in. Base Foot attaches to the bottom of the base mast section. The belted rubber backing is durable and provides protection and solid footing during the setup process. The large area lowers the ground pressure for earthen surfaces. Each foot has two holes for pinning to the ground or larger sill plate. Pinning to the ground surface may not be required if secured by alternate means. Refer to the user manual for specific setup requirements.
Features
• Large Base Offers Low Surface Pressure
• Belted Rubber Backing
• Large Base Offers Low Surface Pressure
• Belted Rubber Backing
Box Dimensions: 10 in. x 10 in. x 2.5 in.
Shipping Weight: 6 lbs

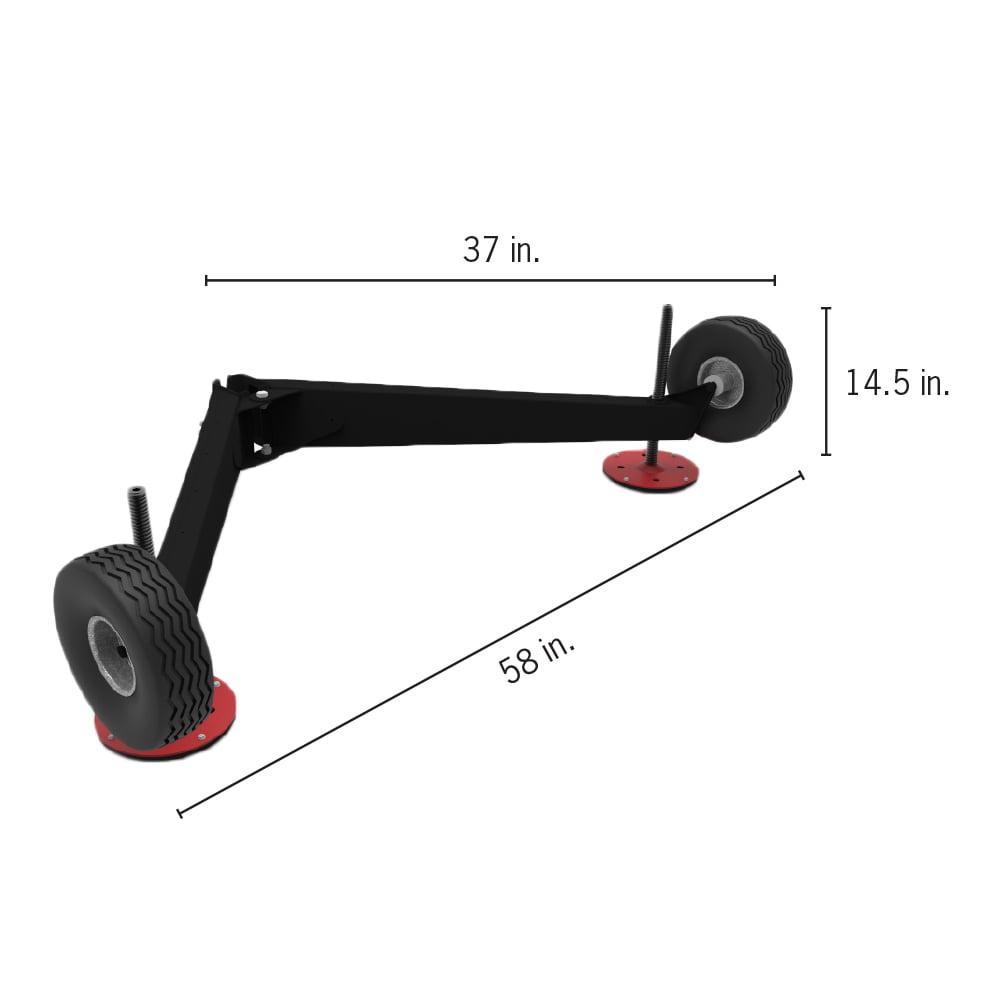

PowerPole Outrigger
The PowerPole Outrigger makes setup and moving around a job site easy. The rugged steel stabilizers keep you pressed into the wall, allowing a 24 ft work height without tying into the structure. Each side of the Outrigger has a stabilizer that adjusts 8 in. to level the system. The assembly clamps onto the mast by hand and can be removed and folded for compact transport to the next job site.
Features
• Fast Setup
• Move PowerPole Easily
• Allows 24 ft Reach without Anchors
• Fast Setup
• Move PowerPole Easily
• Allows 24 ft Reach without Anchors
Box Dimensions: 48 in. x 17 in. x 10.5 in.
Shipping Weight: 56 lbs
Integrated OverSpeed Braking System
The PowerPole gearbox features an Integrated OverSpeed Braking System. This system provides safety redundancy by automatically stopping the platform in the event of over speed.
How Does It Work?
Our Integrated OverSpeed Braking System automatically stops PowerPole in the event of over speed, ensuring your safety and offering peace of mind for workers who use our machines day in and day out!
Cam & Pawl System
This simple and reliable mechanism allows for rotation in only one direction while preventing motion in the opposite direction so PowerPole can climb and descend freely, but would be automatically stopped in the event of over speed.
Steel Components
Our high strength steel components provide superior wear and corrosion resistance.
Dual Pawls
Dual pawls offer safety redundancy.
Easy to Inspect
Housed within the gearbox, the OverSpeed Braking System is easy to inspect as part of regular maintenance and easy to service, if the need arises.
